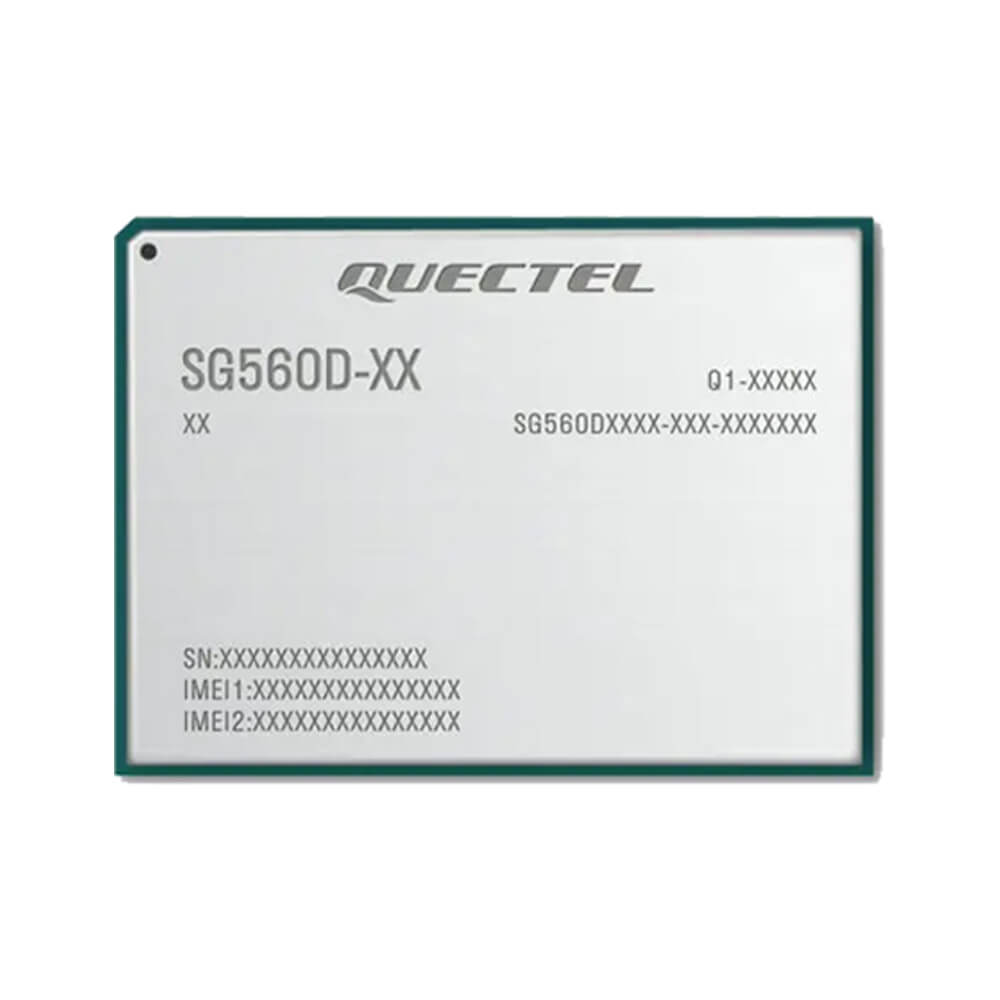

SG560D Wi-Fi 6E & Bluetooth 5G Sub-6GHz LGA Smart Module

Quectel SG560D Wi-Fi 6E & Bluetooth 5G Feb-6GHz Module LGA Smart

Quectel sg560d supported with the most innovative technologies, 5G is designed for a powerful smart internet of things also known as IoT projects module. Signed QCM6490 Qualcomm chipset which works with this module, 8 core, 64-bit Cryo-643 670 CPU and Adreno GPU is equipped with. 12 have the advantage of Android operating system because it comes with easy programming, although it has support updating the operating system. Thanks to its compact dimensions, the product is suitable for use in many projects which SG560D, 5G Wi-Fi 6E, 5.2 is equipped with connectivity such as Bluetooth and GPS. In this way, from applications to industrial systems has a wide range of smart devices. For your projects, you strong, fast and long-lasting SG560D 5G module module, you can choose if you're looking for.

SG560D what does he do?

SG560D, IoT devices-speed internet connection, 5G gives you powerful processing capacity and connectivity features. Cat 18 download 5G 2.5 Gbps, offering download speeds of 900 Mbps, thanks to this module, videos, and other large-scale it is possible to transfer files quickly. Wi-Fi 6E Bluetooth provides a wireless connection up to 100 meters and 5.2. Located in the module, GPS, GLONASS, BeiDou, Galileo, NavIC, QZSS and SBAS assisted GNSS receiver performs the function of determining the position with a precision of 1.5 m. Thus it is possible to use vehicle tracking systems SG560D product. Chassis intelligent robots, which is suitable for use anywhere from the security cameras successful digital signage module is ideal for battery-powered devices with low power consumption.

SG560D what are the characteristics?

SG560D thanks to technical features, acts as a center of power for IoT devices. QCM6490 in the module Qualcomm chipset, 8-core Cryo-643 670 CPU and Adreno GPU for video processing speed provides the computational power and artificial intelligence with TOPS 14. 4 GB LPDDR4X RAM and 64 GB of UFS storage and processing allows you to have enough storage space in the module supports speeds. LTE, WCDMA and GSM, which is backward compatible with SG560D, 5G 2.5 Gbps Cat 18 download speeds of 900 Mbps download. Operating voltage 3.55-4.4 V of the module, successful ultra-low energy consumption provides a great advantage. In Normal mode, sleep mode 10 MA 700 Ma sg560d product uses the energy in battery-powered devices and circuits it is possible to use. Moreover, -35°C to +75°C heat continued to show high performance in varying conditions SG560D IP54 water and dust protection are also not affected.

Compact package sizes include properties between sg560d attention. Package dimensions x x 43.0 44.0 which makes the module ideal for applications with space constraints 2.85 mm. Versatile connection options with SG560D module 1x 4-lane MIPI-DSI (2520x1080@144Hz screen), 1x DisplayPort (4K@60fps), 4x 4-lane MIPI-CSI (36 MP+27 MP@24fps camera), 3x UART, 2x USB (2.0/3.0), 2x PCIe, 2x I2C, 1x I2S, 1x 4x SPI and PWM facility. Which module is suitable for mounting surface, 4K@30fps video encoding, up to 4K@60fps with support for Quick Charge 3.0 is ideal for solving and multimedia projects.

SG560D where it is used?

Small size, rich connectivity options, low power consumption and suitable for use in many areas thanks to the powerful processor, SG560D versatile module. SG560D to use the most intelligent robots, intelligent safes, digital signage, video conferencing systems, industrial PDAs, smart gateways, industrial cameras and in-vehicle entertainment systems are seen. Examples of areas related to sg560d and functions featured include:

• 4K video playback or navigation vehicles is used. With tracking also provides GNSS precise location.
• Advertising screens in shopping centers on 4K@60fps shows the content. Moreover, Wi-Fi 6E, thanks to technology can be updated instantly.
• Autonomous robots in stores or in our homes allows us to process sensor data.
• Allows you to transfer high-quality video for YouTube or Twitch broadcasts
• , grocery stores or restaurants for faster payment processing is used.
• 5G and GNSS in precision navigation and live image with the drone performs the transfer.

Prices SG560D

located between the new generation of Quectel modules sg560d the brand, stands out with its accessible price level. Price level sg560d budget friendly with low power consumption, fast processing capability is supported with features such as versatility and high performance in extreme conditions. Price-performance product like the balance and the store is easily accessible via sg560d allocated for Empa. You can browse other products while sg560d. Store your projects in order to create advantageous conditions for Empa sg560d if you want to buy through you.
