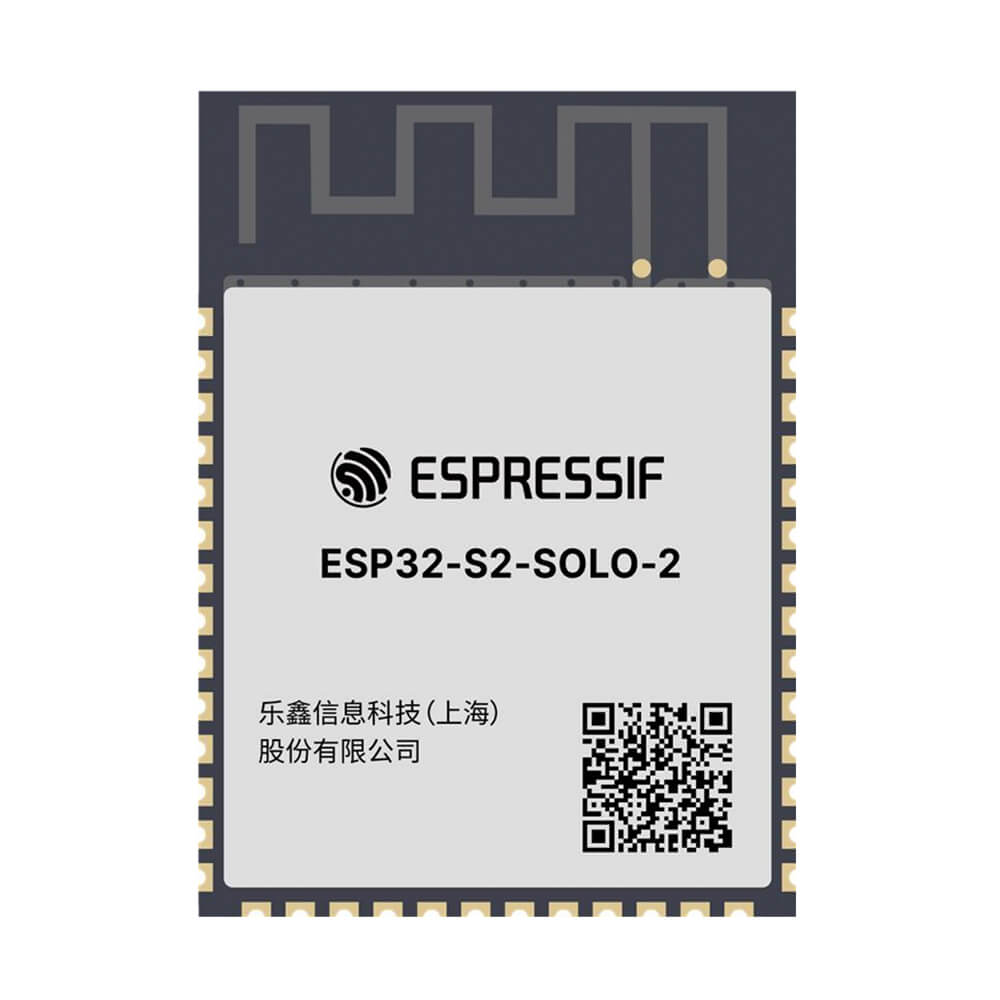

ESP32-S2-SOLO-2-N4 RF TXRX Mod Wi-Fi PCB SMD Module

Espressif ESP32-S2-SOLO-2-N4 RF TXRX mode Wi-Fi Module, PCB SMD

released by Espressif ESP32-S2-SOLO-2-N4, which combines high performance with low power consumption in a compact component. Xtensa® LX7 core, built on modern applications of the module IoT Smart Home Solutions, Health Systems, and in many different areas such as industrial automation works with high efficiency. ESP32-S2-SOLO-2 model, which is part of the series, rich peripheral support, and integrated with PCB antenna system aims to simplify complex designs. ESP32-S2-SOLO-2-N4 features include USB OTG, camera interface, touch sensors, and include numerous communication protocols. Flexibility in terms of hardware and software support, creates a great advantage for developers.

ESP32-S2-SOLO-2-N4, what is it?

ESP32-S2-SOLO-2-N4 product Espressif Wi-Fi-enabled microcontroller is one of the important members of the family. LX7 microcontroller that runs up to 240 MHz single-core, 4 MB of SPI flash memory and 320 KB SRAM optimal performance in low-power systems that require a wireless connection especially with exhibits. ESP32-S2 series units in addition to the comprehensive environmental security, speed connection and low energy consumption, such as issues come to the fore. An integrated PCB antenna that comes with the model, without the need for additional hardware makes a strong signal receive and transmit antenna.

ESP32-S2-SOLO-2-N4 what are the technical specifications?

ESP32-S2-SOLO-2-N4 model, thanks to its extensive feature set is suitable for a wide variety of IoT solutions. ESP32-S2-SOLO-2-N4 technical features are listed below:

• single-core 32-bit Xtensa® LX7 CPU runs at a clock speed of 240 MHz. Thus, the implementation of energy efficiency contributes to the budget.
• 4 MB Quad SPI flash memory read operations and the write speed of sufficient area.
• 320 KB SRAM and 16 KB of internal SRAM in RTC, supporting the overall performance of the system.
• IEEE 802.11 b/g/n Wi-Fi protocols are supported by the product provides data rates up to 150 Mbps.
• USB OTG function is ideal for direct USB connection and device communications.
• SPI, I2C, I2S, UART, ADC, DAC, PWM LED, IR, LCD, camera interface and a peripheral such a wide range of the touch sensor.
• Using the crystal oscillator provides a stable frequency to 40 MHz integrated in product management.
• -40 °C to +85 °C wide temperature range thanks to the range, suitable for industrial environment.
• Working between Model 3.0 V to 3.6 V Power Supply with low-voltage systems are compatible.
• Available up to 36 GPIO pins with flexible connectivity creates the opportunity to.
• The model comes equipped with a PCB antenna. The compact structure of the antenna module, while maintaining effective signal transduction in the lobby.
• Is manufactured in compliance with RoHS and reach compliance with environmental standards.
• The waiting time makes various low power modes with minimum energy consumption.

ESP32-S2-SOLO-2-N4, what does he do?

ESP32-S2-SOLO-2-N4, Wi-Fi connection offers high functionality for embedded systems that require a solution. Advanced security features, USB OTG support, thanks to the compatibility of the touch sensor interface and numerous environmental, can be used in a wide range of applications. USB-based devices, sensor centers, priority projects in energy-saving systems and user interface acts as a strong central unit. Internal PCB antenna, thanks to both saves space and reduces the need for external hardware. The model with low energy consumption, environmental impacts and contributes to the budget supports both.

ESP32-S2-SOLO-2-N4 model of the fields of use

ESP32-S2-SOLO-2-N4 wireless systems that require low power consumption in the use of specifically come to the fore. Embedded sensor applications in data centers and recording devices-speed data transmission with control. Smart agricultural systems are also frequently used product in this field, forms the basis of various applications. Wireless cameras, USB devices, voice command systems and image processing-based projects, the most widely used. ESP32-S2-SOLO-2-N4 is ideal for smart building automation. Portable wearable technologies and IoT Healthcare Solutions provides significant advantages such as compact structure with integrated antenna and projects.

ESP32-S2-SOLO-2-What is the price of N4?
