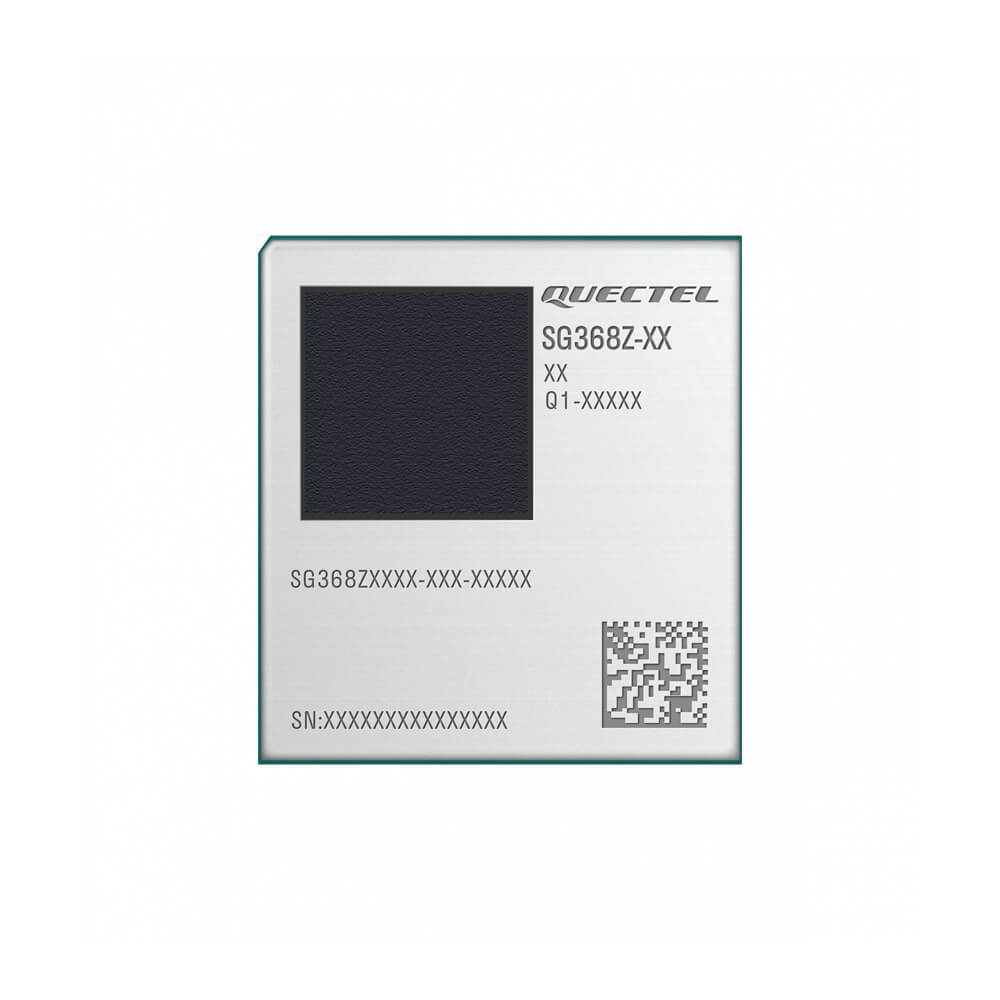

SG368Z Wi-Fi 5 & Bluetooth 4.2 Smart Module

Quectel SG368Z Wi-Fi 5 & 4.2 Bluetooth Smart Module

smart Quectel new generation SG368Z located between the modules, a microprocessor that is designed for IoT projects + connection module. RK3568 Rockchip chipset which works with this module, 4-core ARM Cortex-A55 CPU and financial G52 GPU, thanks to the many tasks alone perform. Linux, OpenWrt operating system that supports Android or SG368Z the product of the project it is the privilege of choosing the appropriate operating system for providing a flexible use. Thanks to its compact dimensions, device or circuit used that are appropriate for almost any SG368Z Wi-Fi 5, Bluetooth 4.2, dual Gigabit Ethernet connectivity, such as technology supports. The smart house sg368z available anywhere from factory automation, low energy consumption and contributes to cost savings. If you're looking for a versatile and smart connection module for your projects, you SG368Z the product you can choose.

SG368Z what does he do?

SG368Z to projects that integrate wireless module-wireless connectivity features such as it provides fast data transfer and power handling capacity. Ideal for projects to be versatile sg368z the IoT, Wi-Fi, Bluetooth 4.2 with a 5 speed 1.2 Gbps, while offering provides a wireless connection of up to 100 meters. 4K@60fps video playback and 1080p@60fps them separated from the other module coding skills with high image quality. Moreover, the module is located in 1 TOPS 1 trillion operations per second and who have the power to NPU, to facilitate the work of artificial intelligence provides. SG368Z integrated memory products, data storage, and simplifies the process of data storage. HDMI, LVDS, MIPI display connections with three different screens at the same time which has the ability to show content module, dual Gigabit Ethernet, SATA, USB and PCIe connections from sensors such as cameras can be linked to everything.

SG368Z what are the characteristics?

Technical features supports high-performance IoT devices sg368z. Located in the module RK3568 Rockchip chipset powered by the 4-core ARM Cortex-A55 processor, 2.0 GHz of processing speed reaches. 8M G52 GPU financial ISP HDR technology offers high-quality image processing. Module 1 SG368Z TOPS NPU the artificial intelligence (AI) operations are optimized for applications with ease in face recognition because it can be used. 1 GB or 2 GB or 32 GB of LPDDR4 RAM and 8 GB eMMC storage options module does not require an additional data storage unit. Also can store the data processed quickly. SG368Z included Wi-Fi 5 and Bluetooth 4.2 wireless adapters facilitates connections.

Featured properties SG368Z between a low energy consumption. 500 mA 10 MA in active mode sleep mode consumes module with battery-ideal for battery powered applications. Operating voltage range 3.3-4.3 V with a smart connection module the operating temperature range is -10°C and +75°C. In this way, may continue to show high performance even under tough environmental conditions. SG368Z separated them from other connection options, 1x HDMI, 1x LVDS, 1x RGB, 1x MIPI, EDP 1x to show content on the screen at the same time with three different supports. Module 3x SATA interfaces (multiplexed), 4x USB (2.0/3.0), 2x PCIe, 3x UART, 2x I2C, 1x SPI, 1x I2S, PWM and 4x can be listed as. Thanks to all these interfaces module, the camera sensor from the screen, it is possible to connect to the engine.

SG368Z where it is used?

Thanks to the powerful features and small size, intelligent robots POS terminals, industrial device used in many areas such as hospitals SG368Z from the terminals, will appeal to a wide audience. SG368Z use and related examples can be listed below:

• vehicle navigation and entertainment systems for providing fast data transfer with dual Ethernet is used.
• Image processing in medical devices such as patient monitors and takes part in the process data transfer.
• Ad stores or at airports 4K image management manages the processes of the screen.
• Home security cameras, smart thermostats, or lights at the same time while controlling Wi-Fi and Bluetooth devices are connected.
• The payment of the crates in the vending machines or smart inventory tracking and Wi-Fi/BT connection.
• The Smart Data Transfer and display device is used to control or fitness hours.

Prices SG368Z

assurance and quality with the price offered to the users liking with Quectel sg368z make a difference. SG368Z most affordable in its segment located between the modules, features, advantageous price-performance balance. Empa SG368Z Store product through the online store are easily accessible. You are also energy efficient, versatile, smart, strong, and a new generation of Empa if you need to link to the module through the store you can buy SG368Z.
