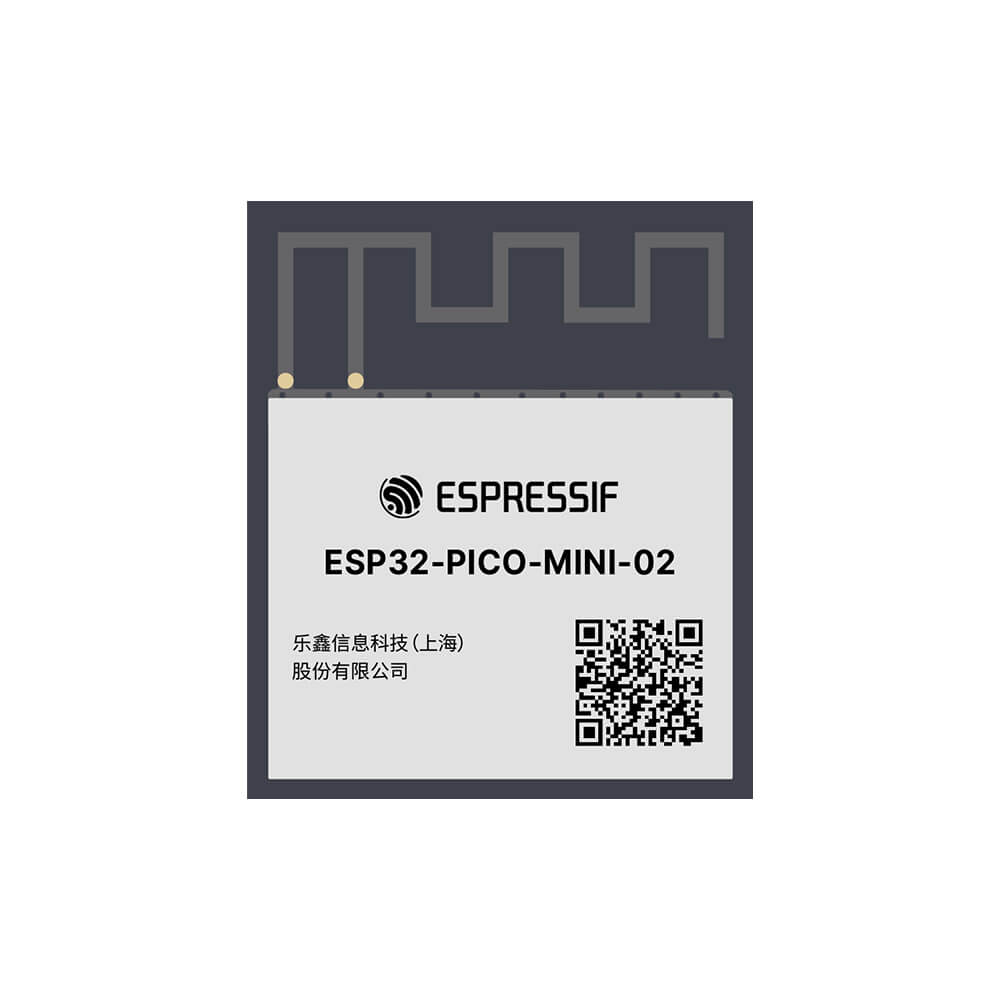

ESP32-PICO-MINI-02 2.4 GHz Wi-Fi / Bluetooth LE Module

Espressif ESP32-PICO-MINI-02 2.4 GHz Wi-Fi / Bluetooth LE module

Espressif Systems, ESP32 is a renowned electronics manufacturer brand signed-PICO-MINI-02 product, Wi-Fi and Bluetooth modules. With integrated wireless connectivity to the application in question is a module that gives you the ability to take advantage of the technology, ultra-compact design that makes a difference. Includes an integrated crystal oscillator and 4 MB flash memory ESP32-PICO-MINI-02 product, ESP32-PICO-D4 chip is based on. Surface mounting SMD module, which provides ease in design integration process known as D A, includes PCB antenna. This helps you operate more efficiently, while increasing the distance of the antenna module connection. ESP32-PICO-MINI-02, is designed for IoT applications and small-scale projects with because it can be used for space constraints. Wireless IoT module you also if you're looking for a powerful and ESP32-PICO-MINI-02 product you can choose.

ESP32-PICO-MINI-02 What does he do?

ESP32-PICO-MINI-02 product, the general wireless communications in IoT projects + process is optimized to provide a shopping electronics. Wi-Fi 802.11 b/g/n and Bluetooth 4.2 (LE) devices with support for module which allows you to connect to local networks or in the cloud, because it contains a dual core processor fulfills even complex tasks rapidly. As an example, ESP32-PICO-MINI-02 module when integrated into a smart thermometer, the temperature data of the Wi-Fi network allows you to be sent to the application via mobile. The module also supports the efficient use of energy both in low power modes of the device can be used for a longer period and helps with the battery. ESP-IDF Arduino IDE programmable through the software or ESP32-PICO-MINI-02, contributes to the acceleration of the product development process.

ESP32-PICO-MINI-02 features are?

ESP32-PICO-MINI-02 specifications featured with a wireless communication module. Module dual-core Xtensa 32-bit LX6 240 MHz and reaches a clock speed of processor can process multiple commands simultaneously and gives you quick results. The module is located in flash memory 4 MB 448 KB ROM + SRAM 520 KB units. In general, the performance of these units that support the module ESP32-PICO-MINI-02 product allows it to be much more functional. Running at 2.7 V to 3.6 V voltage supply, the module Wi-Fi 802.11 b/g/n (2.4 GHz 150 Mbps) and Bluetooth 4.2 (LE) support because it supports high bandwidth.

ESP32-PICO-MINI-02 features include low power consumption, and stands out too. Level 5 µA power consumption while the product is in the most efficient mode -40°C to 85°C works flawlessly in all conditions. In addition to being durable and efficient design that provides versatility separated them from other ESP32-PICO-MINI-02 , I2C, SPI, UART, I2S, PWM, ADC (12-bit) and DAC interfaces are supported. On the other hand, the 27-SMD design and provides GPIO pin 19. 13x11 successful measurements of the module.4x3.Is 1 mm. Ultra-compact dimensions allows for ease in the assembly process. Also like just about every product of the brand ESP32-PICO-MINI-02 also FCC + CE certified and RoHS compliant.

ESP32-PICO-MINI-02 where is it used?

Compact size and wireless connectivity is needed in many applications, ESP32-PICO-MINI-02 It is possible to use. Successful medical devices, intelligent module, home automation, smart retail, entertainment systems, industrial processes and monitoring applications easily prototype development may be preferred. ESP32-PICO-MINI-02 product of the main areas of application are as follows:

• blood glucose meter with Bluetooth technology allows it to be forwarded to the data obtained in the doctor.
• Smart sockets and devices via Wi-Fi is also ideal for controlling.
• Vibration sensors to be monitored the health of the machine is used.
• Price tag allows wireless updates to be received on the screen.
• Wireless game controllers in a low-latency connection.
• Air quality monitors is used to transfer data.
• IoT-based projects, hobby because it provides the advantage of rapid prototyping is preferred.

ESP32-PICO-MINI-02 Prices

developed by Espressif systems, such as many other products that's affordable ESP32-PICO-MINI-02, is an electronic module that cater to nearly every budget. An accessible level with the ESP32-PICO-MINI-02 price and advantageous features of the product is supported. Cost-saving this advantageous properties between the low energy consumption, multiple interface support, flexible operation, durable construction and compact size. Innovative IoT module ESP32-PICO-MINI-02 product Empa Store can be owned easily through the online store. Empa Electronics, including electronic manufacturer Espressif systems between them and is among the official representatives of several brand has a wide product selection. Hence ESP32-PICO-MINI-02, you can browse other products when you purchase, you can reach your needs for modular alternative. You are flexible, powerful, and compact module through the store if you want to Empa IoT ESP32-PICO-MINI-02, you can create an order for.

Manufacturer code: P113BH0000PH3Q0
