SG150H Wi-Fi & Bluetooth 4.2 Multi-Mode Smart LTE Cat 4 Module

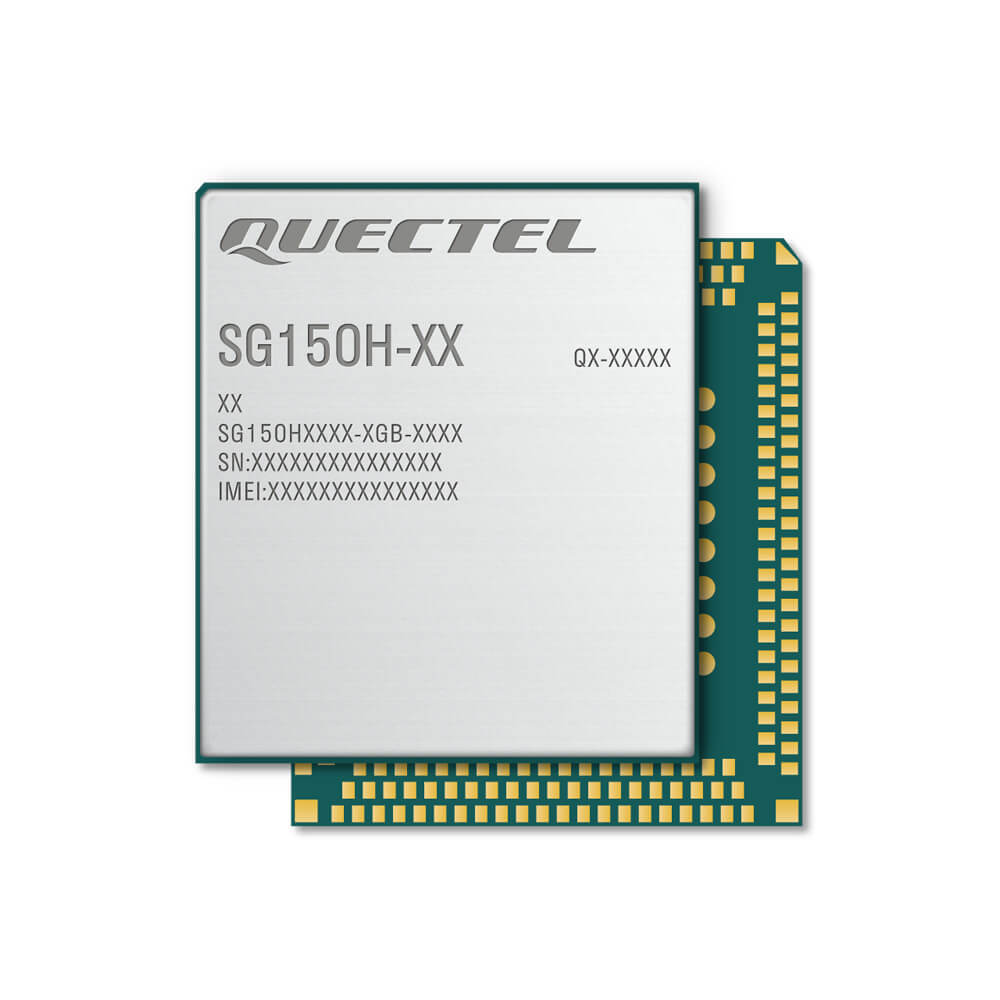

Quectel SG150H Wi-Fi & Bluetooth 4.2 multi-mode Smart LTE Cat 4 Module

Quectel modules SG150H located between the brand new generation of intelligent multi-mode LTE Cat 4 model. Designed for industrial and commercial IoT applications, this intelligent module, dual-core ARM Cortex-A53 64-bit processor and internal financial T820 MP1 GPU. High data rates and multimedia functions SG150H remarkable product works with the Linux operating system. SG150H providing ease of Assembly and compact dimensions, its low cost structure is ideal for IoT developers. Successful with IP54 protection module is protected against dust and water splashes. GPS/BDS/GLONASS assisted high-precision GNSS receivers sg150h that provides convenience in the process of positioning, it is suitable for a wide range of M2M interface Kit Rich. High performance connection solution for use in smart IoT projects that you also SG150H if you're looking for a product you can choose.

SG150H what does he do?

SG150H, microprocessor-based systems, IoT modules are high-speed, wireless connectivity and multimedia functionality gives. LTE Cat 4 module with the technology successfully produced, with 150 Mbps download and 50 Mbps upload speeds provides fast data transfer. Located in the module, with integrated Wi-Fi (802.11 b/g/n) and Bluetooth 4.2 support short-distance wireless communication needs. SG150H module in dual-core ARM Cortex-A53 processor (1.3 GHz), Mali T820 MP1 GPU for video streaming, graphics processing, and complex data analytics in applications such as high performance. On the other hand, LPDDR3 memory 512 MB RAM and 4 GB eMMC flash module, including without acquiring external memory data can be stored, transactions can occur quickly.

SG150H what are the characteristics?

Technical features ideal for IoT and M2M applications SG150H smart module. Located in the module, a dual-core ARM Cortex-A53 64-bit processor 1.3 GHz T820 MP1 GPU performance while maintaining high-speed processing of Financial provides optimization for multimedia applications. With the Linux operating system, providing customizable flexibility SG150H for software development, LTE Cat 4 (150 Mbps DL, 50 Mbps UL) 4G/3G/2G fallback, Wi-Fi 802.11 b/g/n (2.4 GHz), Bluetooth 4.2 supports port technologies. GPS, BDS, GLONASS; 1.5 m CELL sensitivity -165 DBM tracking accuracy of 500 mA 10 MA in active mode with them separated from the other module in sleep mode consumes much energy. This helps provide low energy consumption cost savings.

1x LCM (screen), 2x camera (MIPI-CSI), 1x touch panel, 1x MIC, 1x (U)SIM, 1x SDIO, PWM, 4x, 3x UART, 1x USB 2.0, 2x I2C, 1x SPI interface can be used for different incoming product sg150h M2M applications. The LGA package is offered to the liking of the user SG150H, 37x39.5x2.Has a dimension of 8 mm and about 10 grams. The module is manufactured in accordance with the conditions of successful challenging with IP54 protection level to -35°C and +75°C. at temperatures between smooth performance shows. Hence it can be used in projects that have the extreme conditions. Attention SG150H loop resistance properties between areas. 0.000+ connection/separation cycle, which is quite long lasting module, CE (SG150H-EU), RCM (SG150H-AU), RoHS, REACH compliant.

SG150H where it is used?

Its compact design, rich interfaces, and the compact size sg150h that you have high data rates with a very rich area, ideal for industrial and commercial projects. Use SG150H most POS terminals, vending machines, in-vehicle recorders, intelligent dashboards, the public network radios, barcode scanners, infrared counters, HD cameras, GPS navigator, smart home systems, industrial automation, and portable medical devices are seen. SG150H examples of use can be listed below:

• precision GNSS positioning with LTE for fleet management and vehicle tracking systems allows you to transfer data.
• Food and Beverage Vending Machines in inventory tracking, payment systems, and remote management for LTE and Wi-Fi connectivity offers.
• Instrument panel scooter or motorcycle speed, position and navigation data shows.
• Logistics and retail sectors and is the ideal wireless data transfer for quick browsing.
• 720p gives video streaming and cloud storage function in LTE connectivity to security systems.
• The factory sensor networks are used for data collection and transfer. In addition, I2C and SPI interfaces facilitates the integration.

SG150H Prices

Quectel sg150h innovative IoT portfolio in its segment of cost-efficient modules are included. SG150H characterized at the level achievable price, low energy consumption, long service life, rich interface support, and versatile with its advantages such as usage is supported. Empa SG150H of those who want to visit the online store the store is enough. You can browse other products sg150h when importing a module. If you're looking for a smart and reliable microprocessor module you also with the help of Empa SG150H Store you can buy.
