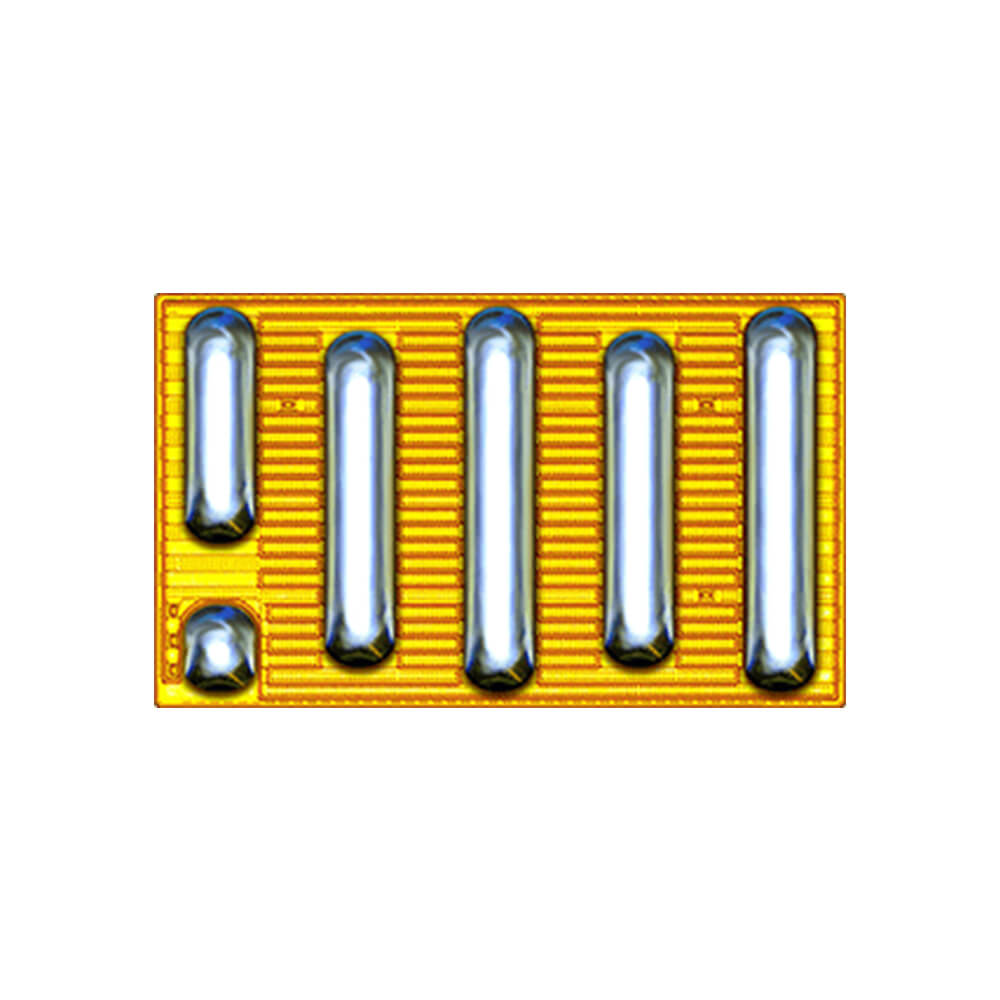

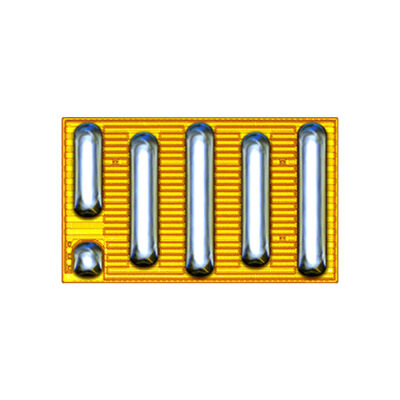

EPC2619 100V Enhancement Mode GaN Power Transistor

EPC EPC2619 Enhancement Mode GaN power Transistors 100 V

EPC2619, advanced technology and high performance-oriented design with modern power electronics and applications for innovative solutions. Thanks to the powerful switching capabilities, precision and speed-critical systems in effective results. Low-loss operation principle, while at the same time increasing energy efficiency, thermal management easy. With the principle of stable operation in high frequency applications, system-wide helps to maintain reliability. Thus, it supports new generation of electronic systems to make it more compact and efficient. Optimized for high-density designs with epc2619 power requirements, thanks to its compact design, it is a structure that can be integrated into small areas.

EPC2619 what is it?

Efficient power conversion (EPC) firm epc2619 product developed by a high-performance “power transistors enhancement mode” model. Gallium nitride i.e. “GaN” is manufactured using technology product, has the ability to work with low switching losses and higher frequency. Due to its compact structure, limited space efficiently even works. Low RDS(on) value and high-speed switching capacity takes place on the basis of a variety of applications. The power density is critical, especially in designs where less heat generation smaller it has an effective role in the cooling requirements and overall system efficiency. EPC GaN technology is ideal for a new generation of advanced power electronics applications.

Advantages to the user of the product EPC2619

EPC2619 features, offers several advantages to the user. Thus, plays an active role in applications that require high performance. Ultra-low “QG” and a value of zero reverse recovery QRR” feature exhibits reliable performance, even at high switching frequencies. A small footprint with an environmentally sensitive understanding. In addition, ultra-high efficiency minimizes energy consumption. The product compact structure, creates a great advantage in intense circuit design. Management feature provides resistance against thermal overheating problems during Operation. EPC2619 the power transistor, the losses of applications where open positions are dominant and fast transition time-critical systems is ideal.

Product EPC2619 remarkable technical features

technical features epc2619 a fairly advanced in terms of product. Thanks to this advanced technology, is used in many different sectors. The main hardware features of the transistor are as follows:

• EPC2619 designed with GaN technology, the new generation power transistor model.
• 100 volts through the power of uninterrupted performance of working exhibits.
• Model RDS(on) mΩ maximum value 4,2 shaped.
• Id value constantly, Ta = 25 ░ C amps is at 29. The ID value is 164 pulsed amp.
• Open offered as 5 - a, 5.25 V typical driver does not require a negative gate voltage.
• For best efficiency, the proposed half-bridge circuit, ≤ 30 ns was measured.
• The top of the FETs is electrically connected to the source.
• VGS gate to source voltage 6 volts.
• Operating and storage temperature of the product is in the range of -40 to 150 degrees. Thus, it exhibits high performance even under harsh conditions.
• Transistor, 2.5 x 1.5 mm in size.
• RoHS-compliant and halogen-free structure is highly sensitive to environmental effects.
• EPC2619 only disabled with Solder bars is supplied in the form of the mold.

What are the areas of use EPC2619?

EPC2619, is a product commonly used in many electronic systems. DC-DC converters isolated DC-DC applications optimizes the transfer of energy. EPC2619 use, especially battery chargers, energy storage systems, battery plays a critical role in areas such as stabilizers. Solar power optimizer and Class-D audio amplifiers in areas such as effective performance shows. EPC2619, e-bikes, e-scooters for electric vehicles such as motor drive and control functions brings. In addition, medical robots, robotic arms, DC servo systems, USB PD compatible chargers is also widely used in high precision applications such as seeking 3.1.

EPC2619 what is the price?

EPC2619 price, is one of the concerns by many users. When considering the technical specifications in terms of product price is quite appropriate. Prices temporal terms, such as order quantity may vary according to situations. Users might prefer to shop in the store for purchase Empa epc2619 the most appropriate. Many internationally known brands represent the best interests of the sale and Empa Electronics, the fastest way to the needs in the field of electronics. You also receive detailed information about functional models from each other in the online store you can easily order the products you like, you can.
