BC846-B-RTK/HU SOT-23 NPN General Purpose Transistor

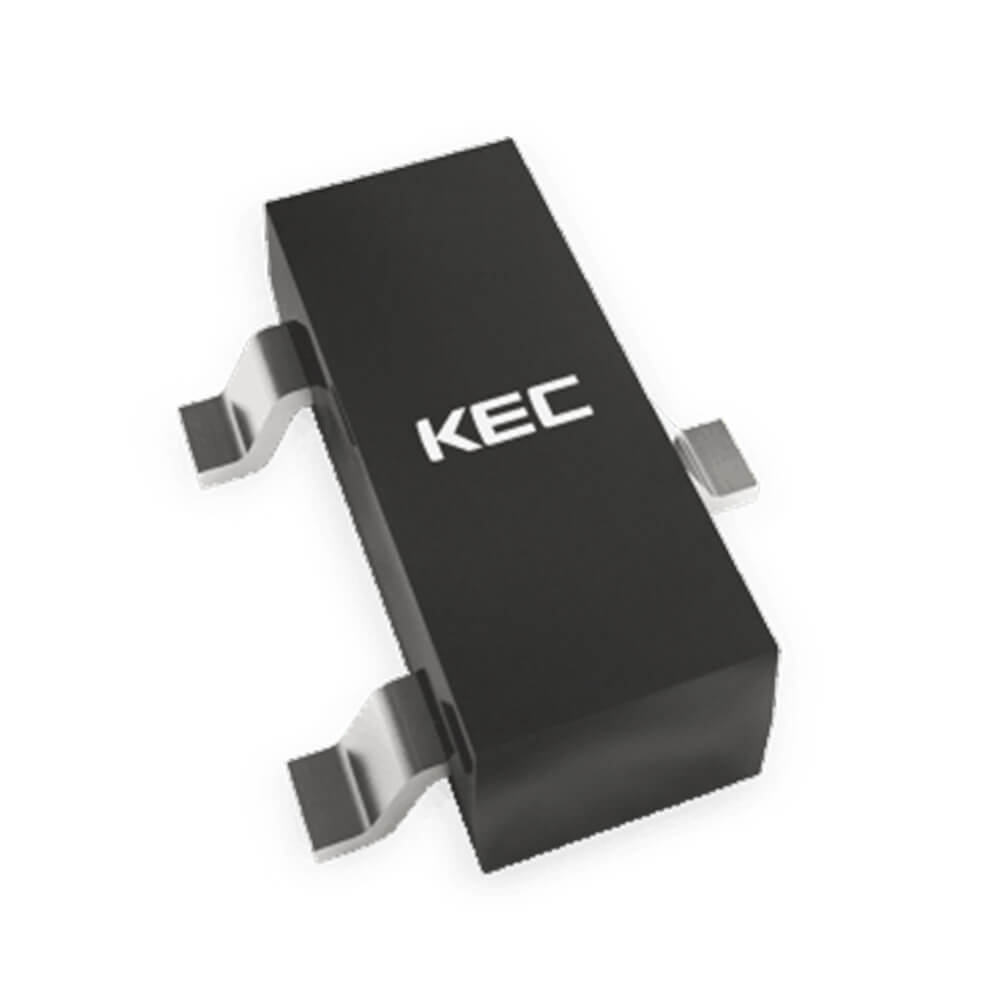

KEC BC846-B-RTK/HU SOT-23 NPN general purpose transistor

KEC brand produced by the semiconductor BC846-B-RTK/HU product NPN Silicon epitaxial transistor is a kind of. Developed for general purpose applications, the transistor 2.9x1.3x1mm dimensions in SOT-23 package is offered. Thanks to its compact dimensions, providing ease of installation surface BC846-B-RTK/HU product, low power consumption and switching function draws attention. 100 MA maximum collector current + voltage collector emitter which will show high performance transistor BC856/857/858 modules is completely compatible with PNP. BC846-B-RTK/HU-55oC to 150oC between the high performance is suitable for use in circuits with demanding conditions, since it is designed to show. You also versatile, compact and highly efficient, if you need a transistor BC846-B-RTK/HU product you can choose.

BC846-B-RTK/HU what is it?

Amplification and switching function in electronic circuits developed to fulfill BC846-B-RTK/HU high-voltage applications, stable performance shows. 100 MA low collector of the transistor with a current amplification which is suitable for power switching and small signal, low noise level and + fast switching signal with the frequency minimizing the distortion. Accurate and reliable performance in circuits with remarkable BC846-B-RTK/HU Circuit Switching System is used in a wide field of audio. Attention BC846-B-RTK/HU inverse properties between emitter + base of the resistance. VEB 6V obtained by the strength, power 250 MW is supported by dissipasyon. Moreover, the SOT-23 package offered to the liking of the user BC846-B-RTK/HU product, provides the advantage of easy integration even in the circuits area constraint.

BC846-B-RTK/HU what are the characteristics?

NPN epitaxial silicon transistor BC846-B-RTK/HU with the technical specifications are similar. Collector + base module 80V voltage collector - emitter voltage 65V if it is level. Maximum emitter - base voltage is 6V. 200 MA 100 MA 250 MW peak current continuous collector current power dissipasyon of the module is limited. BC846-B-RTK/HU minimum frequency 100 MHz collector capacitance transition in the product while it is 4.5 pF typ. level. Gain hFE 200 to 450 thermal resistance of the transistor that provides for a Class B 500 K/W level. Efficiency and durability, which provides you with all the technical features that have BC846-B-RTK/HU transistors, multi-purpose circuits and general electronic applications can be used with confidence. Surface mount technology because they have different designs that can be easily integrated into PBC module has the advantage of effortless installation. Moreover, small-scale constraint in the circuit even when it is suitable for any space.

BC846-B-RTK/HU where is it used?

Developed for use in general purpose applications BC846-B-RTK/HU versatile electronic circuits that can be used in a different type of module. Therefore, the use of the areas is quite large. For example, BC846-B-RTK/general purpose audio amplifiers and circuits to provide signal amplification module can be used in Hu. Successful audio signal circuits of the module used in one of the most important reasons is to minimize the distortion. Stable performance with remarkable BC846-B-RTK/HU it is possible to list the use of the product with other fields of:

• Relay drivers as well as LED control circuits used in BC846-B-RTK/HU, is preferred because it provides fast response. In addition, small-scale because this style is suitable for use in circuits.
• BC846-B-RTK/HU-to-use smart watches and is common in the sensor module. The most important reason for the use of this kind of transistor compact electronic systems thanks to its compact size, space savings is to provide.
• Which is suitable for use in industrial control systems BC846-B-RTK/HU, especially in automated systems is a reliable option for low power switching.

BC846-B-RTK/HU Prices

contained in the semiconductor KEC outstanding product brand Rich BC846-B-RTK/HU stands out the product with a reasonable price level. High-efficiency, voltage, resistance, and thanks to its compact dimensions, offering a budget friendly solution for tasks in amplifier electronic circuits and switching BC846-B-RTK/HU are priced according to the technical specifications. BC846-B-RTK/HU its price segment between the most appropriate transistors. Quality and assurance offered to the liking of the user with Semiconductor BC846-B-RTK/HU Empa store online store can be reached easily thanks to the transistor. KEC Semiconductor brands of Turkey, which was one of the representatives of the EMPA store, every module, accessory, and component has a broad product selection to respond to your needs. Hence BC846-B-RTK/HU when buying other products you can browse. If you're looking for an efficient circuits that can be integrated into your store effortlessly through the Empa transistor BC846-B-RTK/HU you can order.

Click to get datasheet and detailed information about the product.
