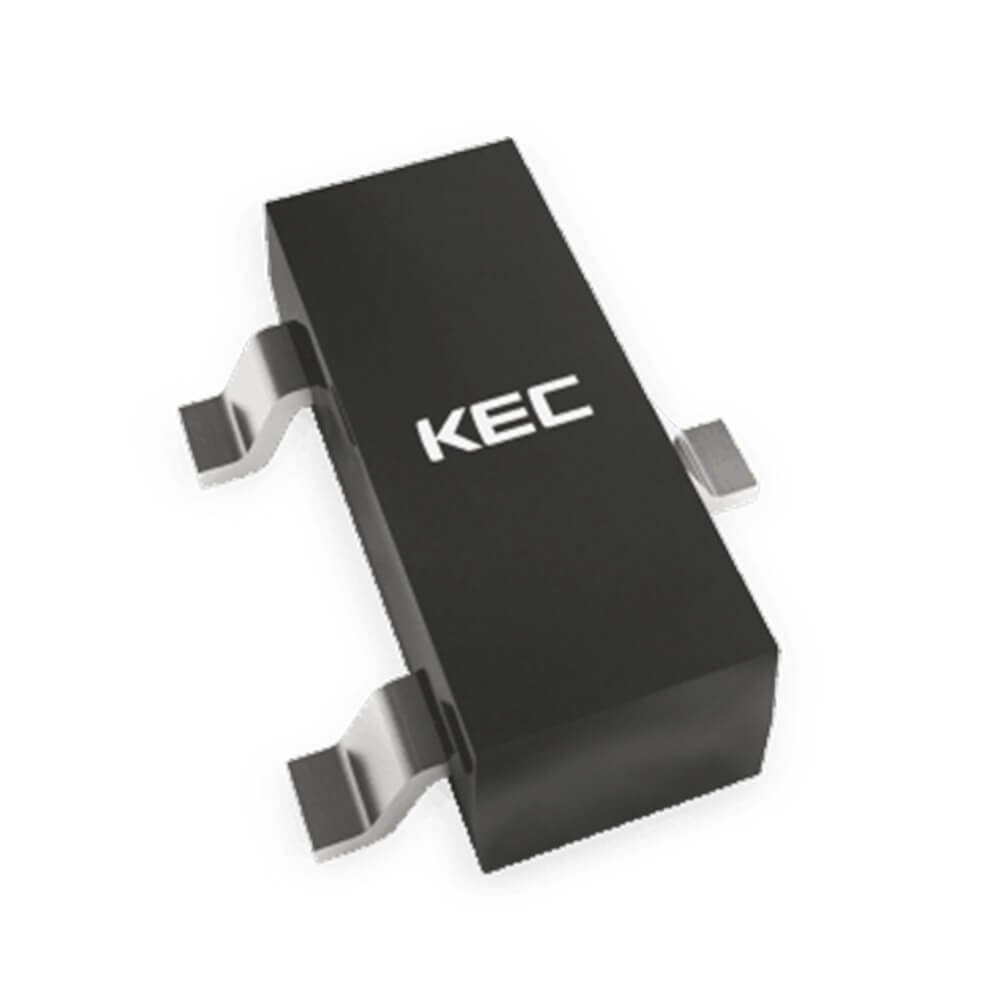

product KEC Semiconductor BC817-40-RTK/PU, NPN epitaxial silicon transistor module. SOT-23 package, because it resides in a compact component which is BC817-40-RTK/PU products, 2.9x1.3x1 mm that can be used in any application due to the dimensions of nature. Moreover, supported by different sizes for the surface mount technology PCB types can be easily integrated. BC817-40-RTK/PU, thanks to emitter voltage collector current collector and the maximum supported by, shows high performance in compact circuits. In addition, the transistor is running with low power consumption, is ideal for many applications that require energy efficiency. BC807 PNP complementary type -55 OC to 150 OC lets you use a component designed for wide operating temperature range makes a difference with. Moreover, the thermal resistance of the component is very high. In this way, possible from a change in temperature without being affected continues to perform. You also if you need a new transistor BC817 your preference-40-RTK/PU aside from the product you can use.
NPN Silicon epitaxial transistor is designed as both switching and amplification electronic circuits BC817-40-RTK/PU products, amplify signal, is used to provide fast switching and motor control. Especially in medium-voltage applications, stable performance showing BC817-40-RTK/PU, medium strong, switching, and is suitable for low signal amplification. High efficiency amplification transistor which is to be preferred to achieve the low noise level thanks to the module at the same time, will prevent signal distortion. Featured BC817-40-RTK/PU features include a fast response includes. Collector emitter saturation voltage, thanks to high-performance component that provides fast response shows both accurate and reliable.
Efficiently lets you use BC817-40-RTK/PU collector base voltage between 50V specifications supported by one of the most striking ones is the value of the component. 45V collector-base voltage emitter, emitter-base voltage collector capacitance CC in the component with the maximum 6V - is equal to 10 PF. 500 mA of continuous collector current, and 1A peak flow that supports the component, Ta= 20 OC under conditions dissipasyon 350 MW power provides. Thermal resistance of the component 357 oC/W level. BC817-40-RTK/PU products with minimum switching frequency is 100 MHz while the saturation voltage, typically 0.2 V/0.7 V level. Saturation voltage levels of the component allows you to produce a fast response. BC817-40-RTK/PU NF in the component known as the noise factor is optimized for low input impedance.
A wide field-of-use with remarkable BC817-40-RTK/PU transistor model named multiple suitable for use in electronic applications has been developed. For this reason, many devices such as personal electronics and automotive systems, and even in practice BC817-40-RTK/PU product can be used. BC817-40-RTK/PU seen in the use of management tools is most power. For example, a transistor used in the circuit of the USB adapter charging, low-loss Energy Transfer allows you to. On the other hand, electrical appliances and BC817-40-RTK/PU products are among the commonly used model. As a mixer, the speed in which the transistor is ideal for motor control circuit device, the speed setting allows it to be made correctly. BC817-40-RTK/PU and other applications where the product is used are as follows:
contained in the semiconductor KEC outstanding product brand Rich BC817-40-RTK/PU, a transistor is affordable. The advantageous components of its segment located between the BC817-40-RTK/PU products, high current capacity and compact design as compared to stands out by providing a budget friendly solution. BC817-40-RTK/PU most of the factors to be considered when determining price, technical specifications, usage and mounting compatibility. KEC semiconductor originating in South Korea with the assurance offered to the liking of the user BC817-40-RTK/PU Empa effortlessly Store it is possible to obtain product from the online store. KEC semiconductor representatives of Turkey, located between Empa store through other modules you may need, you can also easily have components and accessories. For this reason, BC817-40-RTK/PU when buying other products you can browse. You also durable, efficient, compact, and high current capacity through the store if you're looking for a new Empa transistor BC817-40-RTK/PU you can order.
Click to get datasheet and detailed information about the product.
