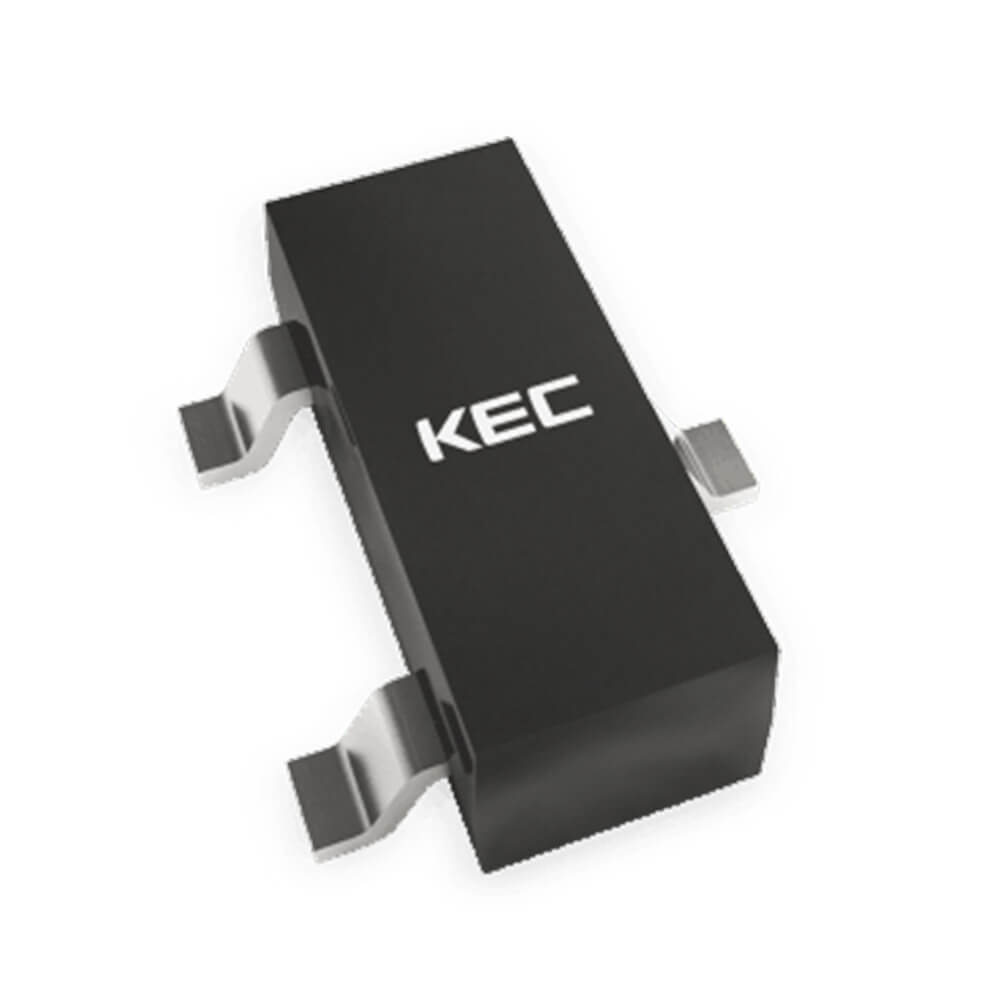

BC857-B-RTK/HU SOT-23 PNP General Purpose Transistor

KEC BC857-B-RTK/HU SOT-23 PNP general purpose transistor

developed by KEC semiconductor BC857-B-RTK/HU product, PNP Silicon epitaxial transistor is a kind of. Manufactured for use in general purpose applications, this transistor SOT-23 package is presented to the customer. The package in Question 2.9x1.3x1 mm and 0.08 g weight because it is very compact. Compact structure, the transistor allows for use in applications that have field restrictions. 45V collector-emitter voltage 100 MA maximum collector current in a component level. thus BC857-B-RTK/HU compact circuits with high performance can be achieved with the product. Operating temperature range -55°C to + 150°C which is suitable for use in extreme conditions, BC857-B-RTK/HU RoHS compliant product to be manufactured from materials with makes a difference. You are efficient, compact and durable if you need a transistor BC857-B-RTK/HU product you can choose.

BC857-B-RTKHU what does he do?

BC857-B-RTK/HU amplification in electronic circuits is generally the product + is a component that performs switching tasks. 45V VCBO VCEO 50V values and, thanks to the medium-voltage circuits stable in performance. 100 MA maximum collector current small signal amplification and switching applications requiring low component enables it to be used. 25 ° C dissipasyon in the condition supplied power of 350 MW. The reverse component of the emitter-base resistance VEB is 5V. 200 - 450 hFE range thanks to the high amplification efficiency, which allows to achieve BC857-B-RTK/HU product, because it has a low noise level, minimizing distortion of the signal. BC857-B-RTK/HU properties between the rapid reaction takes place. -0.65 V collector emitter saturation voltage reaches the component in this way, sensitive and reliable performance.

BC857-B-RTKHU what are the characteristics?

BC857-B-RTK/HU with the technical specifications are similar. Known as vcbo, collector-base voltage: 50V-5V vceo VEBO value is the value of the component level. 100MA current collector peak current is 200 mA, while the term level. BC857-B-RTK/HU dissipasyon include in the product with power 350 MW thermal resistance 357oc. The high thermal resistance of the component to be allows for use in applications where sudden temperature changes occur. Switching frequency 100 MHz at the level of the BC857-B-RTK/HU gain collector typically 4.5 pF and 200 - 450 hFE gain. BC857-B-RTK/HU -0.75 -1.2 V V emitter base voltage is typically of the product while the maximum level. Component saturation voltage, typically V -0.25, -0.65 V is equal to the maximum. Moreover, the noise factor with low input impedance of the component is optimized.

BC857-B-RTKHU where it is used?

In general, the evaluation produced for multiple applications in electronic BC857-B-RTK/HU has a wide range of applications from Automotive to electronics for audio circuits. For example, in the light sensor for providing a signal amplification is preferred. This style circuits BC857-B-RTK/HU ambient light to detect the function of the product. BC857-B-RTK/HU use of portable devices, are also common. For example, smart phones with low-power switching transistor, which allows the battery will support the management process. BC857-B-RTK/HU it is possible to list with other fields of the use of the product:

• home appliances such as coffee machines is preferred because it provides signal processing for BC857-B-RTK/HU transistor plays an active role in the control keypad.
• Units such as machine control, Plc modules for reliable performance BC857-B-RTK/HU component is preferred.
• Such as switches, home automation relay control circuit provides rapid response. Therefore, the switching system is used.
• BC857-B-RTK/HU product works to raise the signal in the headphones as microphone amplifier with low noise preamp.
• Used in automotive electronics. For example, BC857-B-RTK/Hu headlamp control circuits - LED drivers works stable.

BC857-B-RTKHU Prices

contained in the rich KEC semiconductor outstanding product brand BC857-B-RTK/HU transistor model stands out with the appropriate price. Amplification to provide high, medium voltage, resistance, and compact package compared to a budget friendly solution which is BC857-B-RTK/HU product has features that will allow you to use advantageous. However in determining the price or specifications, the area of use, based on details such as the assembly process. KEC Semiconductor assurance and quality offered for sale BC857-B-RTK/HU Empa effortlessly Store it is possible to obtain the product from the online store. KEC Semiconductor the official Store of the brand, which is one of the representatives of Turkey, Empa, modules, has a wide assortment of accessories and components. Hence BC857-B-RTK/HU when buying you can browse other products you may need. Transistor Silicon PNP epitaxial you also that you can use in your electronic projects through the store if you want to obtain Empa BC857-B-RTK/HU you can order.

Click to get datasheet and detailed information about the product.
