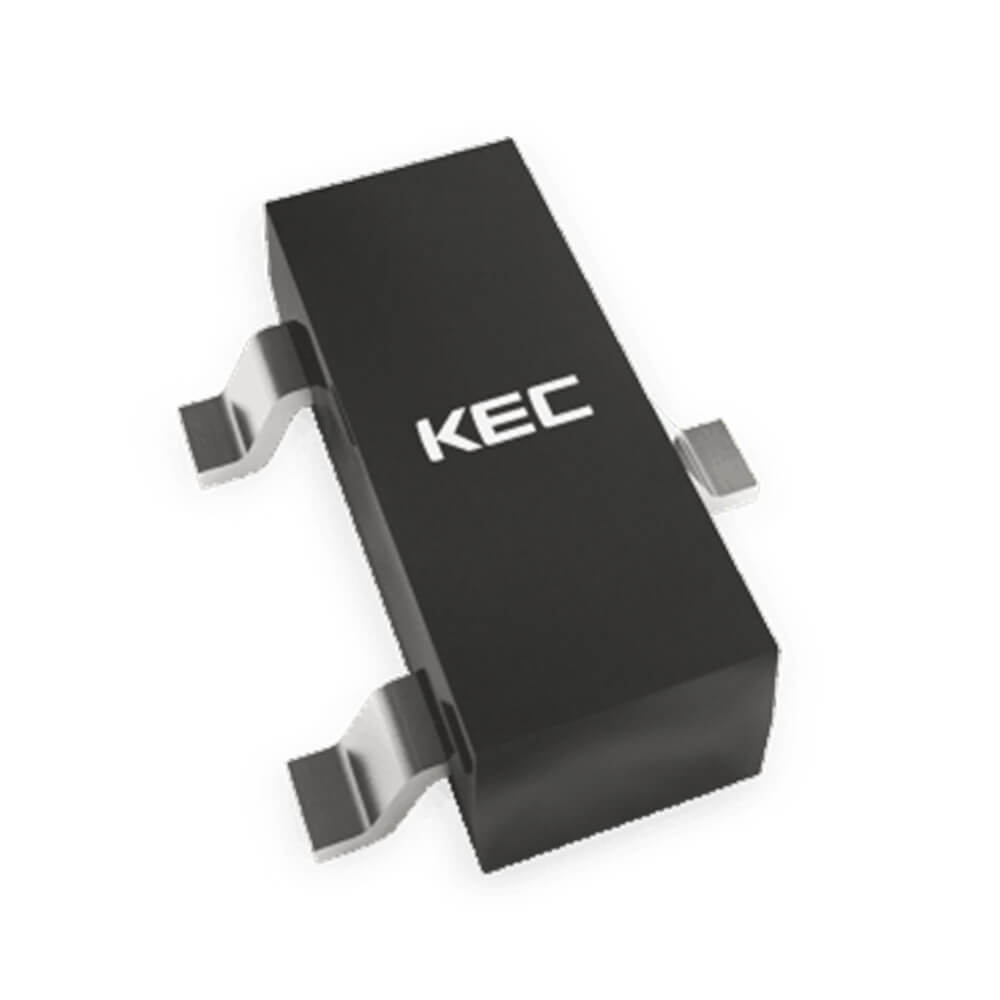

BC847-C-RTK/HU SOT-23 NPN General Purpose Transistor

KEC BC847-C-RTK/HU SOT-23 NPN general purpose transistor

manufactured by KEC semiconductor originating in South Korea BC847-C-RTK/HU product, is the transistor. This component is suitable for use in many applications, general purpose, NPN epitaxial silicon transistor, stands out as. 2.9x1.3x1 mm SOT-23 package, comes in. Simplify the assembly of the components of the package in question while at the same time allows it to be used on projects with space constraints. BC847-C-RTK/HU product, because it is suitable for PCB surface mounting technology can be easily integrated into different designs. Thanks to the switching power consumption and minimum allocated for skills like component, while providing a complementary use BC857 PNP due to the type -55°C to 150°C operating range with high performance even in extreme conditions allows to show the circuits with component. You, too, versatile, efficient, suitable for use in challenging conditions if you're looking for a transistor BC847-C-RTK/HU product you can choose.

BC847-C-RTKHU what does he do?

In many electronic circuits, such as transistors switching + makes the amplification BC847-C-RTK/HU, particularly medium-voltage applications, the work draws attention to the stable. The transistor vcbo vceo 50V 45v values of stabilization with this the most important reason to support. The maximum collector current is 100 MA, supported by the component BC847-C-RTK/HU product is ideal for small signal amplification and low power circuits. Technically, the TA value at 25 ° C is 350 MW power dissipasyon which component, also with reverse 6V VEB emitter-base resistance. In addition, the Collector emitter saturation voltage allows the transistor to react quickly. BC847-C-RTK/HU product with low noise levels, it is also possible prevents signal degradation. All this BC847-C-RTK/HU properties, ensures that the transistor has a wide application area.

BC847-C-RTKHU what are the characteristics?

BC847-C-RTK/HU technical characteristics featured, high-performance transistor model. The base voltage collector is one of the most striking features in these transistors. While this is a component of voltage of 50 v, 45 V collector emitter voltage and 6V emitter-base voltage. Continuous collector current - IC ICM, while at the level of 100 MA - 200 MA peak current level. BC847-C-RTK/HU minimum switching frequency of 100 MHz is at the level of the product. Collector capacitance is 4.5 PF typically. 357 oC -55 OC to 150 OC operating temperature range thermal resistance of the component, which is. In this way, too, even in cold or hot environments free performance shows. Also can tolerate sudden temperature variations. Power dissipasyon the value of Ptot 350 MW with BC847-C-RTK/HU hFE in the product boiler 420 - 800, 270 min, while the saturation voltage is 0.25 V, and the emitter base voltage V is equal to the value of 0.66. Technical specification is suitable for use in many areas through the transistor allows the use of advantageous.

BC847-C-RTKHU where it is used?

With a wide field of use BC847-C-RTK/HU-product, multi-electronic exhibits high performance in many applications. Switching systems are one of the most used areas of the components. For example, intelligent lighting, LED are intended to provide fast switching of transistors that are used in the control circuit. BC847-C-RTK/HU use is common in automotive systems. Such as parking sensors in-car sensors used in a component of reliable performance shows. BC847-C-RTK/HU list with other fields of use of the product, it is possible to:

• control panel is used in home appliances such as microwave ovens, and the signal processes.
• Factory automation industrial control mechanisms, such as stable performance are ideal for relay drivers.
• Portable electronic products, smart hours, while providing low power switching makes the display control.
• The humidity sensor in the device, it is desirable to provide climate control in signal amplification.
• BT-speaker with low noise signal in the circuit tech works to raise as headphones.

BC847-C-RTKHU Prices

KEC Semiconductor product exclusivity of the brand Rich in BC847-C-RTK/HU stands out with affordable rates. The world's most versatile, compact and efficient operation compared to the successful solution of offering a budget friendly component, with a wide field of use makes a difference. BC847-C-RTK/HU when determining the price of the product is based on the technical features to uses as many details as. KEC Semiconductor produced and offered for sale with quality and assurance BC847-C-RTK/HU store the product in the online store is easily accessible from Empa. The official Store of the brand KEC Semiconductor representatives of Turkey, located between Empa, numerous module, component, and Kit has a rich assortment of accessory from occurring. Hence BC847-C-RTK/HU when buying you can browse other products you may need. You also Empa through the store if you need a new generation transistor BC847-C-RTK/HU you can order.

Click to get datasheet and detailed information about the product.
