Motor Control Power Kit STEVAL-IPMNG8Q STMicroelectronics

Product Code : STEVAL-IPMNG8Q.ST

Location	Quantity	Shipping Status
Available Stock	2 Unit	Same Day Shipping 1-3 Days Delivery
Warehouse Stock	0 Unit	Shipment from Warehouse 2-3 Weeks Warehouse Delivery
Total Stock	2 Unit

Document
not found

Free Shipping

85 USD + VAT

VAT INCLUDED : 4,346.31 TL

Min. Order: 1 | Fixed Pack: Unit

CREATE REQUEST

Description

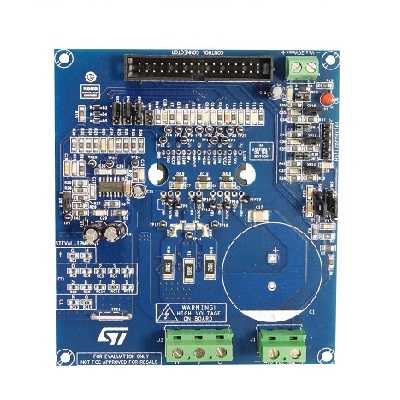

Kit Power motor control STEVAL-IPMNG8Q STMicroelectronics

motor control Power Kit STEVAL-IPMNG8Q, SLLIMM ™ -nano (small low-loss intelligent molded module) 2. serial product (STGIPQ8C60T-HZ) based on compact development kitis.

The main characteristics of this evaluation board are small size, high productivity and minimum boom is. An interface circuit (bus and connectors V CC), boot capacitors, snubber capacitor, hardware short-circuit protection, fault event signal and temperature monitoring features. Single-or three-shunt configuration and with triple current is designed to work in detection options: three special internal op-amp, embedded MCU op-amp or single internal IPM op-amp. Hall / Encoder partial completes the circuit.

The system is field-oriented control (FOC) to fulfill the typical requirements for conditioning of the current feedback is designed to provide accurate and rapid.

STEVAL-IPMnG8Q, provides a complete platform for motor control STM32 ST-based control panel is compatible with.

Kit Power motor control STEVAL-IPMNG8Q general specifications

input voltage: 125 - 400 V DC
nominal power: up to 600 W
nominal current: up to 4,8 a RMS
input auxiliary voltage: up to 20 V DC
current detection for single-or three-shunt resistors (network-detection)
for the detection of the current three options: custom external op-amps, internal SLLIMM-nano op-amp (mono) through the MCU or
excessive current hardware protection
IPM temperature monitoring and protection, a
Hall sensor or encoder input
IGBT intelligent power module:
-2. IPM SLLIMM nano series (STGIPQ8C60T-Hz - fully molded packaging)
ST MCU boards that makes the interface with the motor control connector (32-pin)
universal design for further evaluation with Bread board and testing pins
very compact size
RoHS compliant

Kit Power motor control STEVAL-areas of use IPMNG8Q

white goods, air conditioning, compressors, fans, engine, and in general motor drives for 3-phase inverters in applications such as high power to drive the motors in a variety of affordable and easy-to-use solution.
