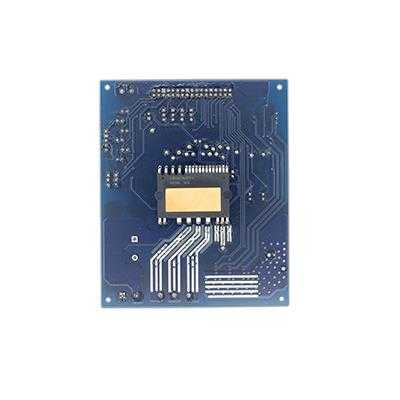

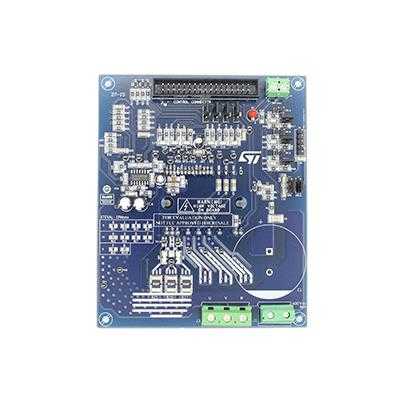

Kit Power motor control STEVAL-IPM10B STMicroelectronics
motor control Power Kit STEVAL-IPM10B, SLLIMM ™ 2. serial module STGIB10CH60TS - L is based on a compact development kit.
IPM' s low voltage short circuit rugged IGBT itself and locking, smart shutdown, internal temperature sensing and NTC, and overcurrent protection consists of a wide variety of features such as.
With these advanced features, the system is field-oriented control (FOC) of the feedback current that meets the requirements typical for conditioning are designed to provide precise and rapid.
STEVAL-IPM10B St's STM32-based control panel and provides a complete platform for motor control compatible with.
Kit Power motor control STEVAL-IPM10B general specifications
- input voltage: 125 - 400 V DC
- rated power: up to 1200 W
- nominal current: 7A to
- Input auxiliary voltage: up to 20 V DC
- current detection for single-or three-shunt resistor (detection network),
- two options for current detection: special op-amps or through MCU
- hardware over current protection
- IPM temperature monitoring and protection, a
- Hall sensor or encoder input
- SLLIMM ™ IPM 2. STGIB10CH60TS Series-L IGBT intelligent power module uses
- ST MCU boards to interface with the motor control connector (32-pin)
- for further evaluation and test breadboard pins understanding the universal
- size very compact
- RoHS compliant
Kit Power motor control STEVAL-areas of use IPM10B
white goods, air conditioners, compressors, fans, high-quality electrical appliances and motor drives in general for 3-phase inverters in applications such as high power to drive the motors for a variety of affordable, easy-to-use solution.
Click to get detailed information about the product.
Share
Free Shipping
%0 |
90 USD + VAT
