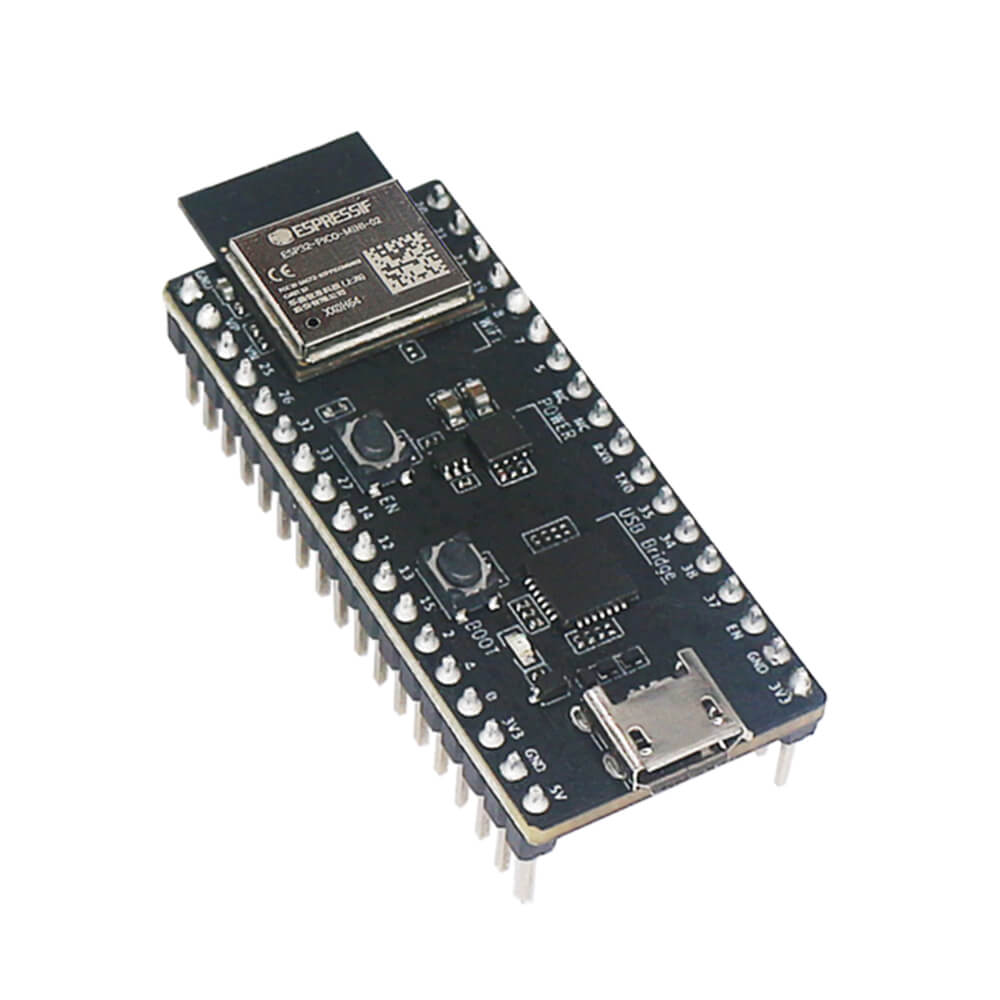

ESP32-PICO-DevKitM-2 Wi-Fi / Bluetooth Smart Ready 4.x Dual Mode (BLE) Development Board

Espressif ESP32-PICO-DevKitM-2: Wi-Fi / Bluetooth Smart Ready 4.x Dual Mode (BLE) Development Card

by carefully designed brand Espressif ESP32-PICO-DEVKITM-2, Wi-Fi and Bluetooth® features a compact structure combines. ESP32-PICO-MINI-02/A! 02u! module that is based circuit card, small form factor and is ideal for limited space applications. USB-UART bridge, allows fast programming with computers. In addition, the debug feature provides control during implementation. GPIO outputs a wide and powerful microcontroller architecture suitable for applications which require a wireless connection. ESP32-PICO-DEVKITM-2 with a versatile feature from amateur users to professional designers will appeal to a wide audience.

ESP32-PICO-DEVKITM-2 What is it?

ESP32-PICO-DEVKITM-2 product, ESP32-based development is the model of the card Espressif SoC. ESP32-PICO-MINI-02/! 02U! integrated with the module works. Operating in the 2.4 GHz band Wi-Fi supports Bluetooth connections. Located on the power supply to the board through the USB port provides. In addition, the programming is performed via UART operations in the most efficient manner. All GPIO pins in the exported model, establishes a connection with different peripherals in an easy way.

ESP32-PICO-DEVKITM-2 product advantages

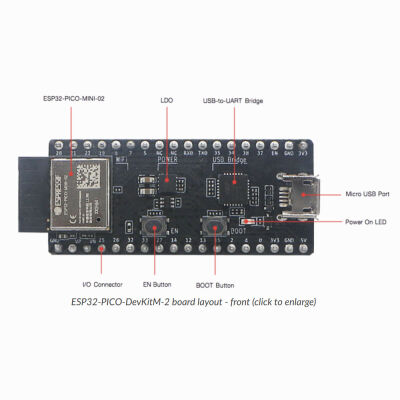

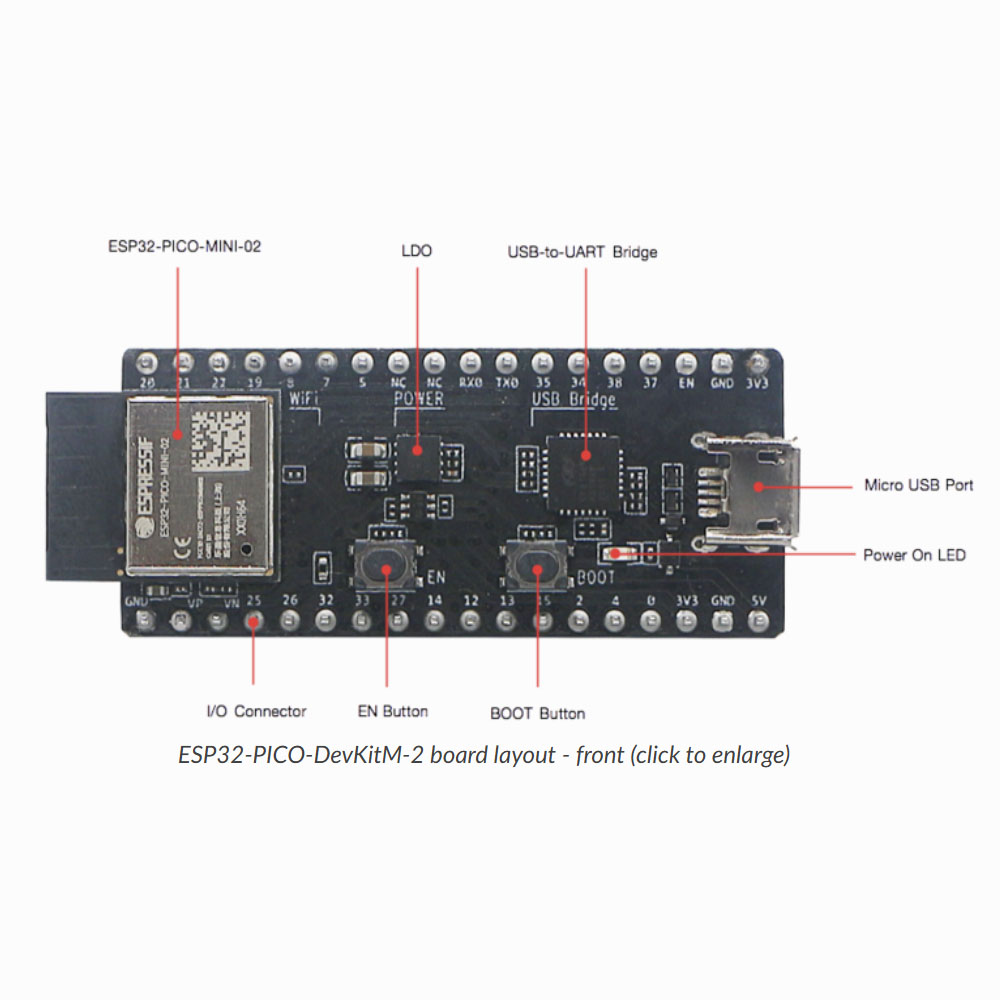

ESP32-PICO-DEVKITM-2, a high-performance compact term from a product. Integrated USB-UART Bridge, thanks to the developers, only a USB cable directly with programming and debugging operations. 5 v low dropout voltage regulator 3.3 V supply are downgraded to the level safely. Thus, in terms of energy efficiency makes a difference. ESP32-PICO-DEVKITM-2 properties located between reset and boot buttons, the software makes installation much simpler. The LED indicator located on thanks to continuously monitor the energy state of the system. Espressif fully compatible with various software development tools as the model works.

ESP32-PICO-DEVKITM-2 technical details

ESP32-PICO-DEVKITM-2, has a strong infrastructure to streamline the development process. In this way, continuous and reliable in the application process experience. ESP32-PICO-DEVKITM-2 technical specifications are listed below:

• ESP32-PICO-MINI-02/! 02U! module, dual-core Xtensa® processor can operate at 240 MHz frequency.
• Wi-Fi and Bluetooth® support allows you to have multiple connections with.
• USB-to-UART bridge circuit, makes up to 3 Mbps data transfer providing fast programming.
• 3.3 V regulator with 5 V from the USB is converted to the appropriate voltage for the system.
• On the card, a micro-USB connection for both power supply and communication via radios.
• Reset and the boot Keys, has the ease of physically managing the installation of firmware.

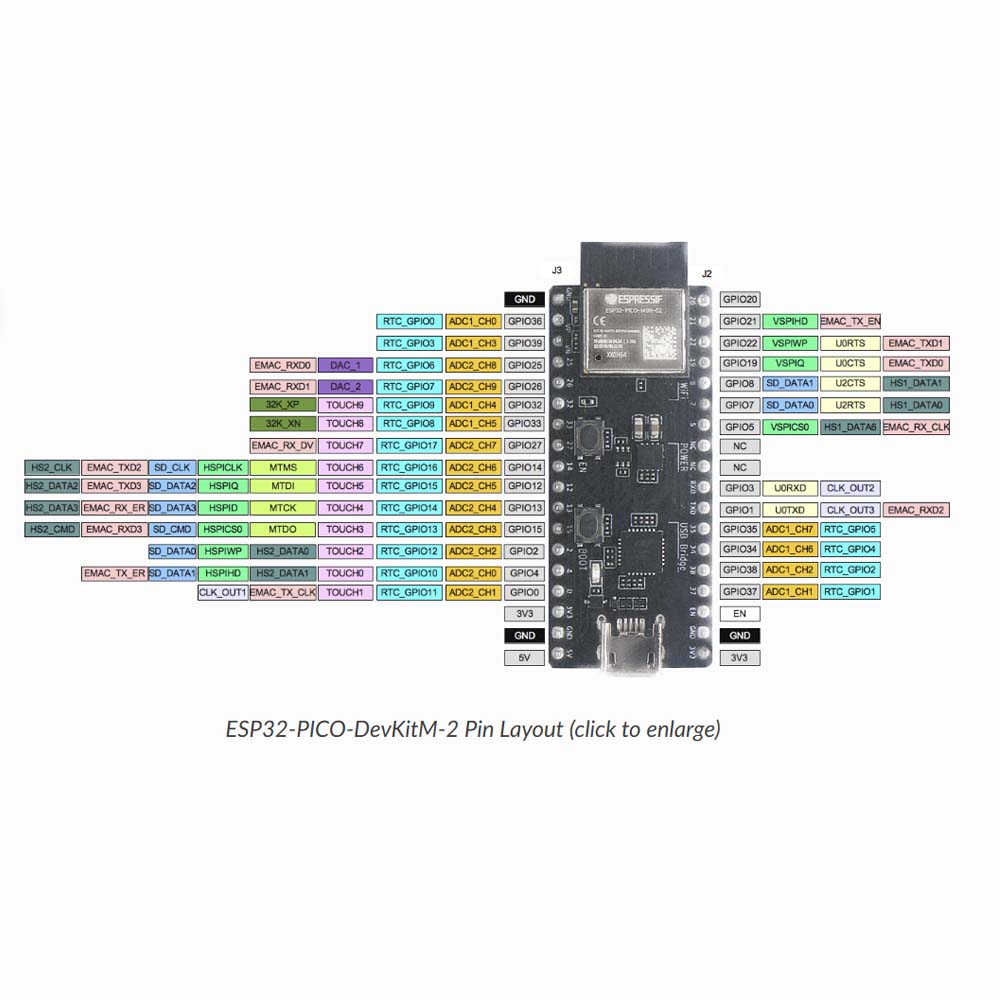

• 18x0.1” pin header connections with GPIO, ADC, DAC, SPI, I2C, I2S, such as access to many functions is done in easy way.
• The development that came with the card pin outs compatible with DuPont cables. This feature can be used alone on the breadboard.
• PWM output on the GPIO pins, analog input, multiple functions, such as touch input can be controlled.
• As a development framework, ESP-IDF, indicates full compliance with the Arduino IDE and PlatformIO.USB 5 V Power Supply 3.3 V offers versatility with the option of including header, 3 different header.
• It is suitable for portable and wearable devices with compact size and lightweight design projects.
• Multi-use model, even under severe operating conditions effective way it works.

ESP32-PICO-DEVKITM-2 areas of use

ESP32-PICO-DEVKITM-2, Wi-Fi and a Bluetooth® connection is needed is common in many applications. Smart home systems for managing various devices is highly effective. Data collection by wireless sensor networks and energy monitoring solutions also makes the process of creating quick links. ESP32-PICO-DEVKITM-2 extensively in mobile health applications are preferred. In addition, cards that are frequently used industrial automation systems development takes place on the basis of the various devices. ESP32 thanks to powerful processing power, artificial intelligence-based solutions plays an active role in. Cards feature development with rapid prototyping, developers, designers and students is an indispensable component.

ESP32-PICO-DEVKITM-2 What is the price?

ESP32-PICO-DEVKITM-2, draws attention with advanced wireless features. ESP32-PICO-DEVKITM-2 model in terms of price is quite appropriate. Price; order quantity, supply chain conditions, such as details can vary depending on seasonal conditions. The development Empa card users through the store the affordable price we can supply. Empa electronics fore with quality service in the electronics industry, the product gives place to many brands. Functional and quality models from each other through the online store, you can examine in detail. Your favorite products and ESP32-PICO-DEVKITM-2-buying process, you can perform quickly.
