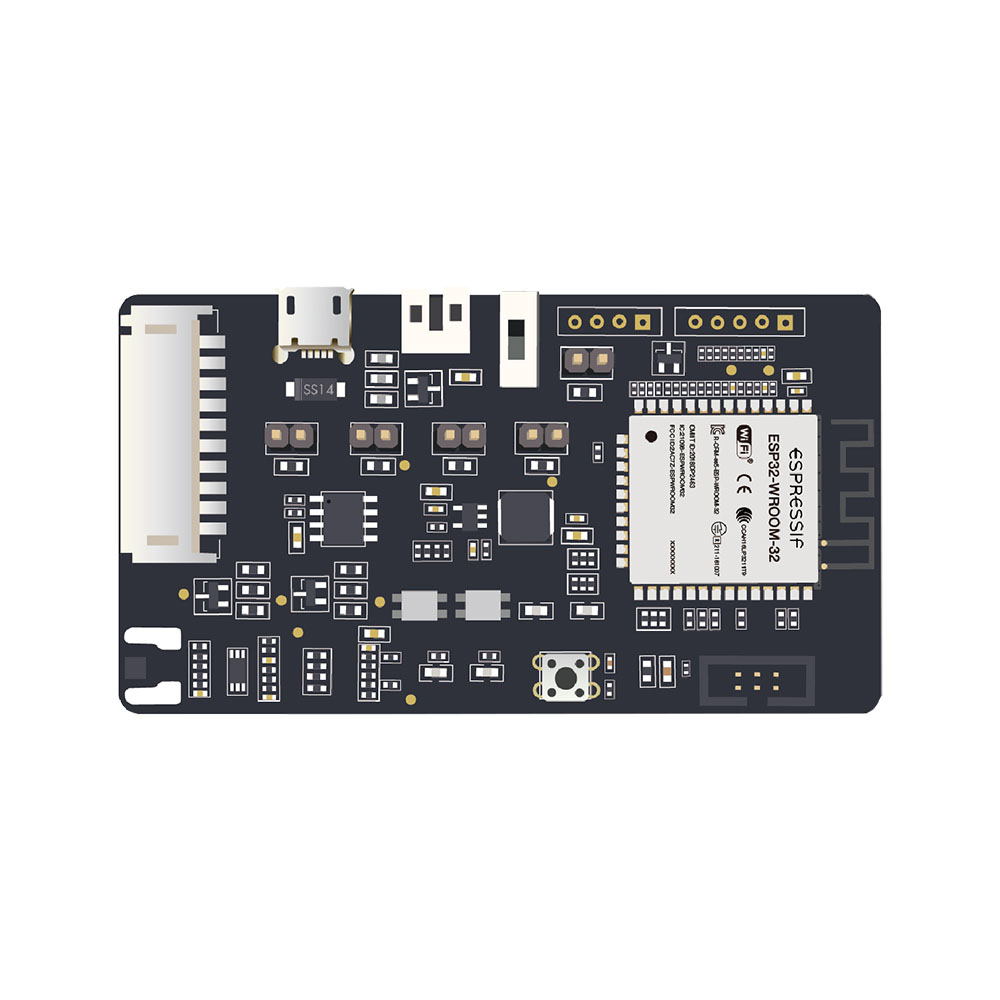

ESP32-MESHKIT-SENSE 2.4GHz Wi-Fi / Bluetooth Evaluation Board

Espressif ESP32-MESHKIT-SENSE 2.4 GHz Wi-Fi / Bluetooth Evaluation Board

based in China, world-renowned electronics manufacturer Espressif Systems designed by the ESP32-MESHKIT-sense product, a kind of IoT Development Board. Allocated from the core ESP32 Development Board similar to the modulus, moisture - temperature sensor + ambient light sensor display connection, such as with many environmental units. Card which allows the measurement of low power consumption, the power consumption in normal operation or sleep mode to test the ESP32 module was developed. Compact structure and ESP-WIFI-MESH with remarkable support component, efficiency, and flexibility are intended to provide. If you need a flexible development IoT projects you card ESP32-MESHKIT-sense product you can choose.

ESP32-MESHKIT-SENSE, what is it?

ESP32-MESHKIT-sense product, low power consumption, basically IoT projects + wireless networking functions. ESP32 module by detecting the energy consumption, especially for battery-powered devices, which enables the optimization of China to be a development card, allows you to use a process advantageous. As an example, given in a smart home network ESP32-MESHKIT-SENSE temperature data it collects from the respective sensors, and then Wi-Fi transmits it to other smart devices on the network through mesh. HTS221 humidity and temperature sensor makes measurements precision development located on the card. Located in the component, ambient light sensor lighting control and provide data to the smart home system. ESP32-MESHKIT-SENSE products ESP-Prog also provides support for debugging in conjunction with the installation of the firmware. All these contribute to facilitate the development process.

ESP32-MESHKIT-sense what are the features?

ESP32-MESHKIT-sense in its segment with the development of the specifications is one of the most preferred platforms for the IoT. Successful component reaches 240 MHz xtensa dual-core 32-bit LX6 processor. ESP32 module is contained in the processor, 4 MB flash memory + 520 KB SRAM + Wi-Fi Adapter + Bluetooth V54.With the adapter 2 is supported. Occurring multiple ESP32-MESHKIT-sense product operates with 3.3 V supply voltage. On the other hand, the chip supports power management component of the ap5056 is located in the battery charge. Direct regulator or a battery via a USB connection that works with a 3.3 V up to 600 mA output gives ETA3425 in a card. Also the header unit ESP prog-Prog support the installation of the firmware offers.

Consumption of only 5 µA in low power mode when it runs ESP32-MESHKIT-SENSE cards named development of measuring 65x30 mm, RoHS compliant package comes in. CE-certified environmentally friendly, this component operating temperature range of -40°C to 85°C and can be used in extreme conditions. Attention ESP32-MESHKIT-sense units between the features integrated in the component stands out. One of them is forensic HTS221 temperature - humidity sensor. ±0.5°C, ±3.5% RH accuracy of humidity that makes the measurement with Temperature Sensor, Ambient light sensor, I2C interface connector and the button connected to pin io34 RTC display monitors. The button in question is used to wake the system from sleep mode.

ESP32-MESHKIT-SENSE where it is used?

ESP32-MESHKIT-SENSE cards named development of a mesh network requires, and low power consumption are important in applications where IoT is used. The most frequently used areas of the components listed below can be successful:

• smart home networks, temperature + humidity data over the mesh network it is preferable to be shared and air conditioning are controlled.
• Monitor the moisture level and greenhouse conditions in the agricultural sector is used to optimize as necessary.
• To provide energy savings and measure the power consumption of the smart meter works.
• Factory low energy consumption in Sensor Networks offers the possibility to follow up with the status of the equipment.
• Ambient conditions followed by portable medical devices for patient comfort.
• It is ideal for settings with automatic light sensors ambient light. Therefore, the intelligent lighting system is used.
• Education for development purposes and prototype IoT projects ESP32-MESHKIT-SENSE connection with the use of programming and low-power mesh network can be learned.

ESP32-MESHKIT-sense the prices

Espressif Systems manufactured with the quality of ESP32-MESHKIT-sense is similar to the price. Its price segment - the most advantage in terms of performance development situated between the cards, component, flexible price level appropriate usage, durability, cost savings, with features such as supports. ESP32-MESHKIT-SENSE card Store called the development of a new generation of Empa it is possible to reach through the online store. Empa electronics, and is one of the official representatives of the brand an extremely rich and many electronic product is outstanding. This selection of the cards as well as developing the next-generation modules, accessories, integrated units, kits, and accessories. Hence ESP32-MESHKIT-SENSE when purchasing other products, you can browse if you wish. You also that you can use in your projects of the IoT low-power network-based IoT and flexible if you need a card, Empa through the store ESP32-MESHKIT-SENSE your order to you immediately, you can create the product.
