Audio IC Development Kit ESP32-LYRATD-MSC

ESP32-LYRATD-MSC audio Development Board produced by Espressif brand on the market. Artificial intelligence applications are used in different application areas such as smart speakers. Voice interaction, automatic speech recognition, acoustic echo cancellation, voice stands out with different features such as truncation. With high performance ensures that the user's expectations are met.

ESP32 is a product that is developed with the hardware equipment. Instrument for digital signal processing hardware, ESP32 chip, additional RAM, such as microphone array is composed of different parts. The components in the structure of the product helps to increase the performance of ESP32 audio development kit. Kit, artificial intelligence applications, you can use for your projects successful in sound enhancement.

ESP32-LYRATD-MSC Equipment

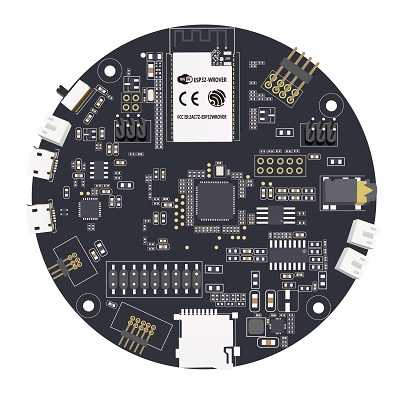

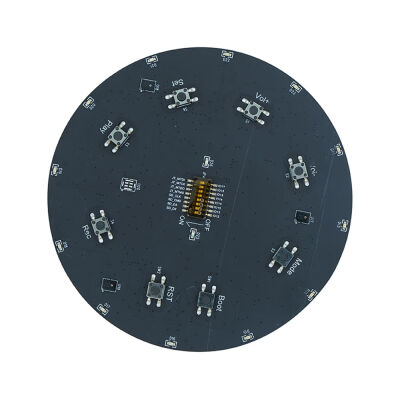

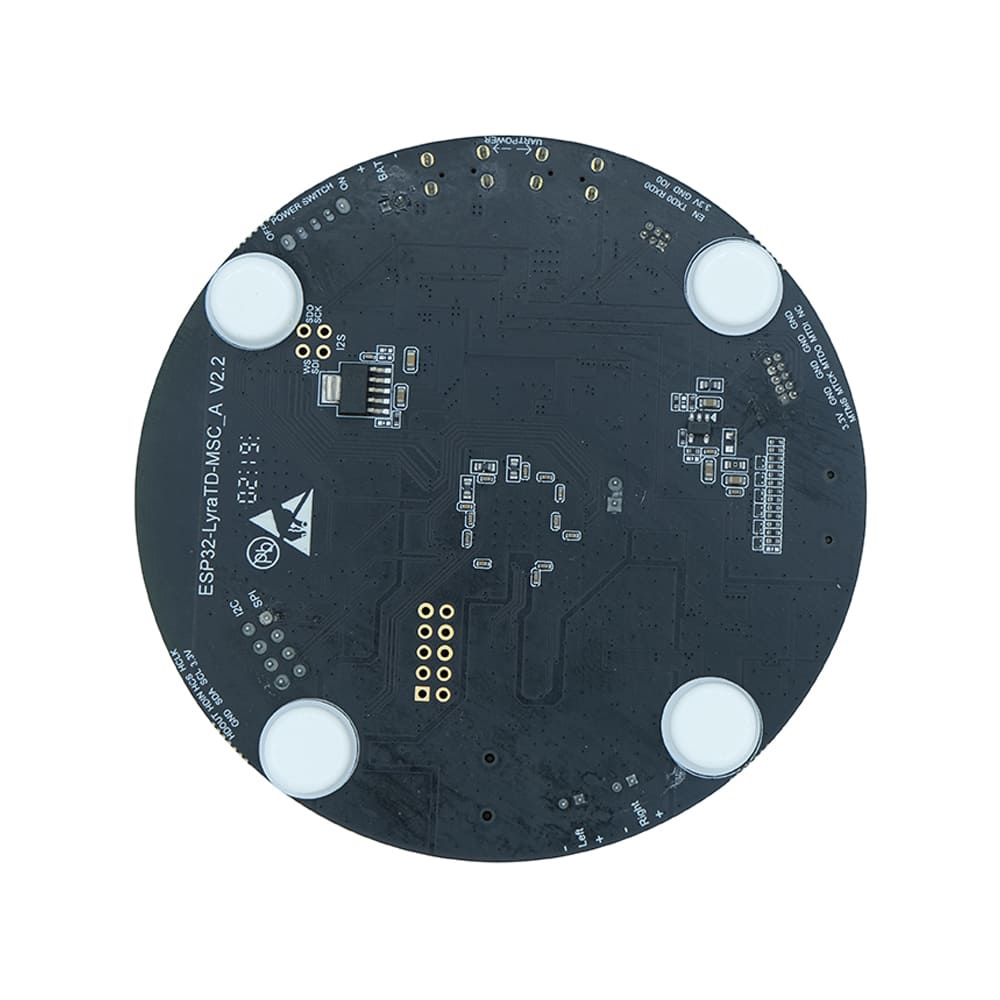

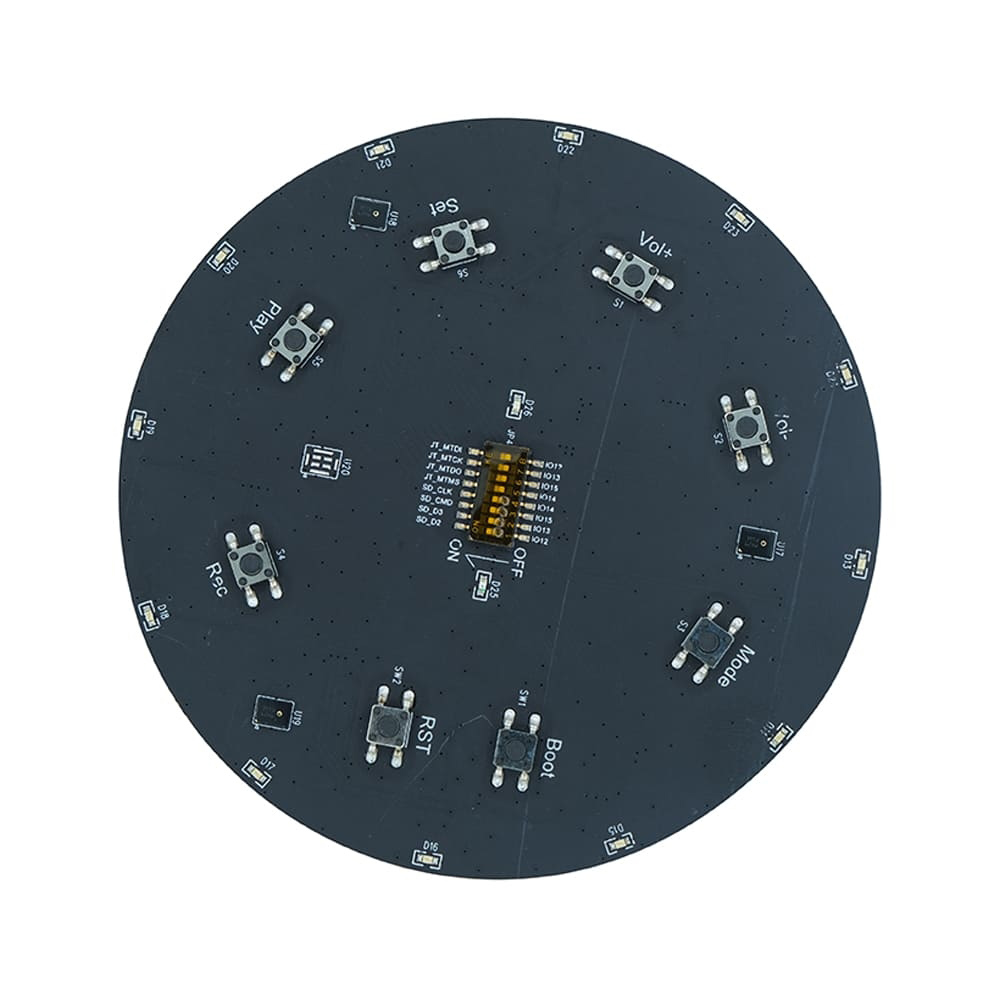

EPS32-LYRATD-MSC technical features responds to the expectations of users. The product basically consists of two parts. Ensures that fulfill the function of two different components in the equipment section. The first section of the instrument; function keys, the top panel which provides an array of three microphones, LED lights in the lobby. The other chapter, the bottom card which will be integrated into the power management module, and a digital signal processing chip microse my room. The top card of the equipment, (B), and the bottom card (A) basic hardware section are as follows:

• Li-ion battery charge management
• headphone
• ESP32-WROVER-E module
• 2 x 3 watt speaker output
• an interrupt signal to digital (DSP) chip
• , microSD card slot,
• support the uptake of the three Far-Field sound digital microphone
• integrated USB-UART bridge chip
• distributed in a circle around the card, individually controlled LEDs front two
• ports on different interfaces: JTAG, I2S, SPI, The I2C
• functionality of the user card for the purpose of routing function keys 6

ESP32-LYRATD-MSC Features

Audio IC development kit, ESP32-LYRATD-MSC optional intelligent voice interaction for speech applications with cloud services and is highly functional. Also the product image recognition, and human-machine interaction, artificial intelligence applications with functions such as supports. In addition, real-time feedback thanks to the connection details and Dec, suitable for use in smart home devices.

Senior technical features of the equipment draws attention. Single button on a Wi-Fi network configuration, such as acoustic echo cancellation functions stands out. In addition, waking up to the sound near and far field, exhibits high performance in the detection of additional equipment such as artificial intelligence projects.

The product is dual-mode (Wi-Fi + Bluetooth audio enables quick and easy development of solutions. Provides access to different cloud platform. Equipment, voice recognition, and analysis support. ESP32 audio development kit, the general characteristics are as follows:

• uses low-power, cost-effective audio solution smart,
• M4A, aac, flac, ogg, OPUS, MP3, WMA audio formats, including multiple
• Amazon, DuerOS, Tmall Genie, Turing, JD and access to cloud platform such as iFlytek,
• Wi-Fi 802.11 b/g/n, BT and BLE in the 2.4 GHz band Classic
• speech and voice recognition, additional functions such as echo cancellation
• Smartconfig, BLE and air-kiss as the possibility of different network configurations, such
• as HTTP live streaming internet radio and Ximalaya
• BT, DLNA, SD card via Wi-Fi audio inputs
• , Three digital microphone far field sound, providing the distance between the intake of 1-5 meters
• LED strip light, having the function buttons
• a two-card design feature

Audio IC development kit, ESP32-LYRATD-MSC Use

ESP32-LYRATD-MSC for the use of some additional hardware must be integrated into development kit. 2 right, left speaker or 3.5 mm headphone jack with a development kit is available. If

product is to be used with a single speaker of the speaker, if the value of the property must not exceed 3 watts of power.

JST PH 2.0 for the product to work in 2-pin plug should be used. If these chips already exist during development, DuPont jumper cables off should be preferred. In addition, the development of 1 × Windows, Linux or Mac OS is installed on a computer should be used. 2 x Micro-USB 2.0 cable, Type A - Micro B connection can be provided.

Audio IC development kit, ESP32-LYRATD-MSC product to use in different application areas can be easily obtained through Empastore according to your needs. ESP32-LYRATD-MSC can get information related to the price of empastore through.

ESP32-LYRATD-MSC frequently asked questions about the

ESP32-LYRATD-MSC is a development kit which brand?

ESP32-LYRATD-MSC, the brand is produced by Espressif.

ESP32-LYRATD-MSC Which cable to Use?

ESP32-LYRATD-MSC product JST PH 2.0 2-pin plug, Dupont jumper with cables or off is used.

ESP32-LYRATD-msc does the cable?

ESP32-LYRATD-MSC product next to the cable doesn't.

ESP32-LYRATD-MSC Products are genuine?

ESP32-LYRATD-MSC product is original.
