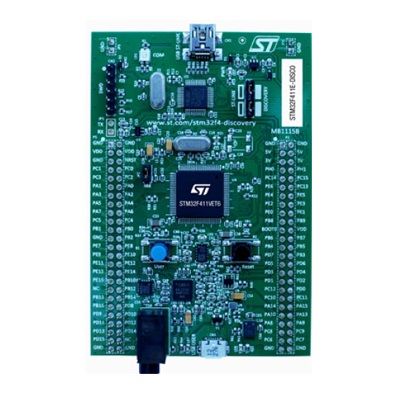

STM32 Processor Kit STM32F411E-DISCO - 1

STM32 Processor Kit STM32F411E-DISCO - 2

STM32 Processor Kit STM32F411E-DISCO

Product Code : STM32F411E-DISCO.ST

Location	Quantity	Shipping Status
Available Stock	17 Unit	Same Day Shipping 1-3 Days Delivery
Warehouse Stock	0 Unit	Shipment from Warehouse 2-3 Weeks Warehouse Delivery
Total Stock	17 Unit

Free Shipping

18.8 USD + VAT

VAT INCLUDED : 961.30 TL

Min. Order: 1 | Fixed Pack: Unit

CREATE REQUEST

Description

STM32 Processor Kit STM32F411E-DISCO STMicroelectronics

STM32 processor kit STM32F411E-DISCO, STM32F4 series, to discover and to develop your applications easily used. STM32F411VE includes MCU.

STM32 Processor Kit STM32F411E-DISCO the general properties of

512 KB of flash memory and 128 MB of RAM in lqfp100 package STM32F411VET6 hosts microcontroller
Card power supply: through USB bus or from an external 5 V supply voltage with
an internal St-link / V2 (with SWD connector for programming and debugger)
3 V and 5 v external power supply options
L3GD20; ST MEMS Motion Sensor 3-axis digital output gyroscope and LSM303DLHC; 3D digital linear acceleration sensor and a 3D digital magnetic sensor system package includes ST MEMS, MP45DT02; Versatile sound sensor ST MEMS digital microphone CS43L22; internal Class-D audio DAC with speaker driver
Eight LED:
-LD1 for USB communication (red / Yesil)
-3.3 V Power for LD2 (red)
-four user LEDs: LD3 (Orange), LD4 (Yesil), LD5 (red) and LD6 (blue)
-two USB OTG Led: LD7 (Yesil) VBus and LD8 (red) over-current
two push buttons: user and reset the
Micro-AB USB OTG connector
Prototype for probing the link to the clipboard for fast and easy LQFP100 I/O extension for the header,the
