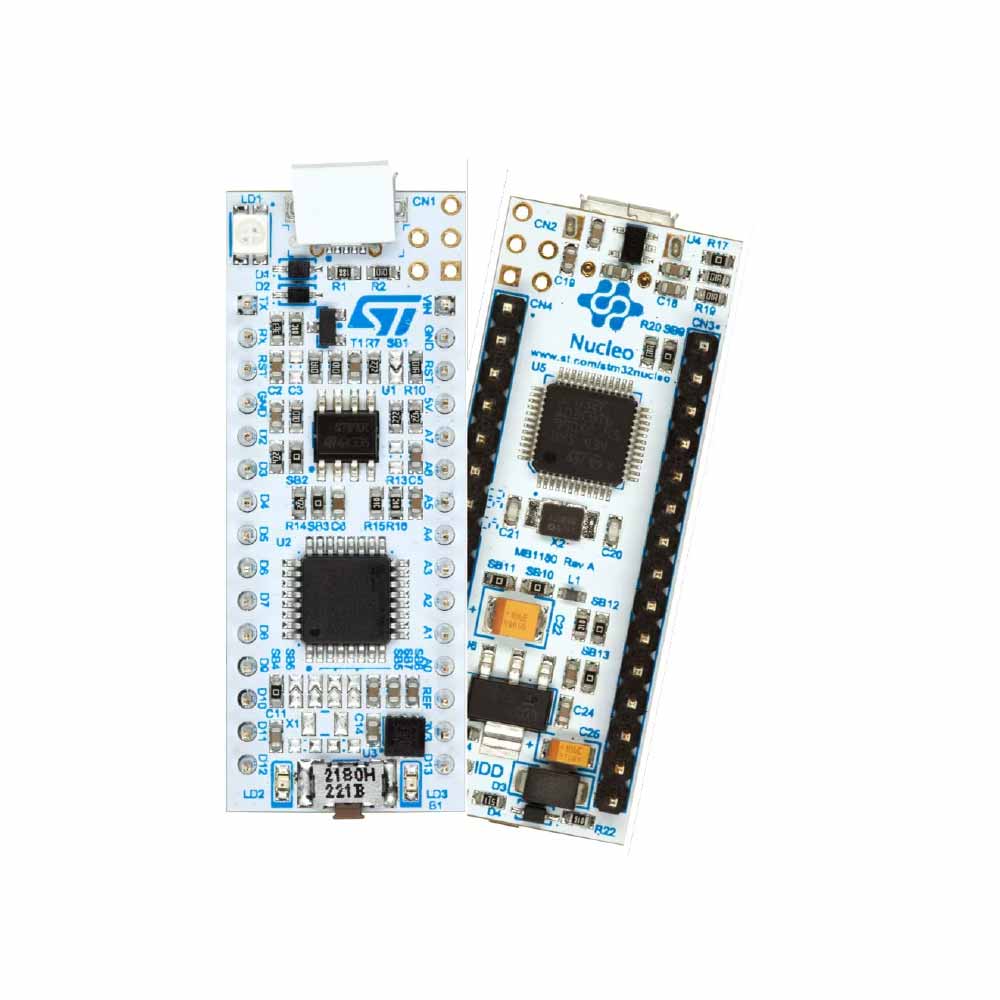

Processor Kit STM32 NUCLEO-F042K6 STMicroelectronics
STM32 Processor Kit NUCLEO-F042K6users to try new concepts and different performance and power consumption by selecting one of the combinations of features in 32-pin packages in any STM32 microcontroller line offers an affordable and flexible way to build the prototype. STM32F042K6 includes MCU.
Arduino ™ nano connectivity, STM32 Nucleo open development platform functionality makes it easy to expand with custom shield options.
STM32 Nucleo-32 development kit, St-link / V2-1 debugger / programmer to integrate does not require a separate probe.
STM32 Nucleo-32 developers kit, comes with the STM32 comprehensive software HAL library together with various packaged software examples, and provides direct access to online resources.
Processor Kit STM32 NUCLEO-general characteristics F042K6
- STM32 microcontrollers in 32-pin package in the
- Arduino ™ Nano connectivity expansion
- mbed enabled (http://mbed.org)
- an internal St-link / V2-1 debugger / programmer
- with USB refresh capability: three different interfaces supported on USB:
-Virtual COM port
-mass storage
-debug port - Flexible card power supply:
-USB VBUS
-external source that has - three LEDs:USB communication (LD1), power led (LD2), user LEDs (LD3)
- reset button
- including IAR integrated development environment (IDE) that is supported by a wide selection ™ , Keil ® , GCC-based IDE (AC6 SW4STM32, ...)
- Arm Mbed compatible
click here to get detailed information about the product.
