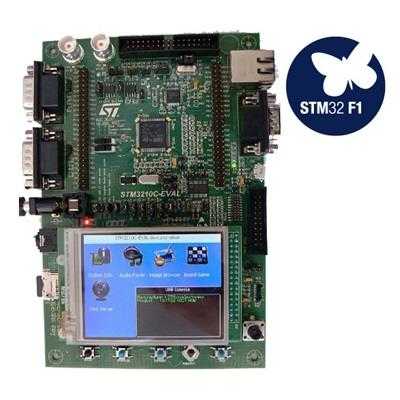

STM32 evaluation kit stm3210c-eval STMicroelectronics
STM32 evaluation kit STM3210C-EVAL, stmicroelectronic the ARM Cortex-M3 core-based STM32F107VCT mikrokontrolcu for a complete development platform. STM32F107VC MCU includes.
The hardware features on the card, all peripherals (USB-OTG FS, ethernet, motor control, CAN, microSD CardTM, smartcard, USART, audio DAC, MEMS, EEPROM, and more) helps you assess and develop your own applications.
Extension headers, makes it easy to connect a daughterboard or wrapping board for your specific application.
STM32 evaluation kit stm3210c-eval the general features
- of three 5 V power supply option:
-electrical outlets
-USB connection
-Daughterboard - User Flash boot from system memory or SRAM
- I2S audio DAC, stereo audio input
- 2 GByte microSD card ™ or larger than
- both A and B type smartcard support
- I2C-compatible serial interface 64 kbit EEPROM, MEMS and I / O extender
- Rs-232 channel
- IrDA Receiver
- USB OTG full speed, MicroAB USB connection,
- an IEEE-802.3-2002 compliant Ethernet connector
- two channels can 2.0 A / B compliant connection for
- Inductor motor control connector
- JTAG and trace debug support for
- 3.2 "240x320 TFT color LCD touch screen
- 4-directional joystick with control and selector
- Reset, wakeup, tamper and user buttons,
- 4-Color LED
- with the RTC battery spare
- MCU consumption measurement circuit
- board connector extension for wrapping a sled or
click to get more information about your product.
