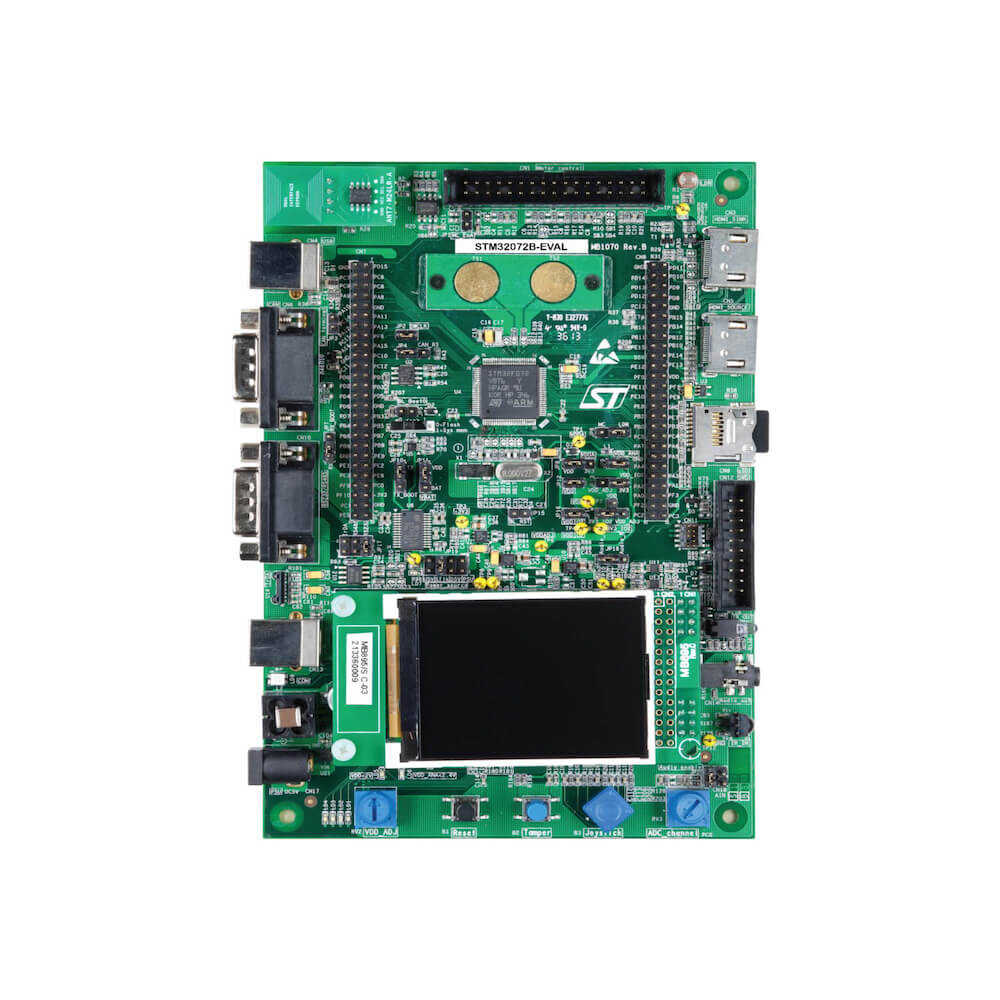

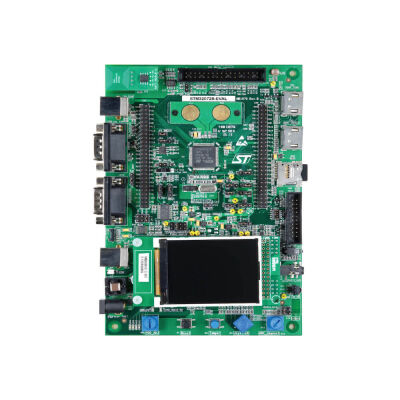

STM32 evaluation kit STM32072B-EVAL STMicroelectronics
STM32 evaluation kit STM32072B-EVAL, two I2C, two SPI, USART, four, one, CAN, 12-bit ADC, 12-bit DAC, two GP STMicroelectronics ARM Cortex-M0 microcontroller core is designed as complete demonstration and development platform for STM32F072VBT6 based. Comparators, internal 16KB SRAM and 128KB Flash, USB FS, touch sensing, CEC, SWD debugging support. STM32F072VB includes MCU.
All of the hardware features on the card, the evaluation of all the peripherals and user-specific development of applications designed for. Extension headers for user-specific applications for a utility to easily connect to a card or board wrap is used.
St-link / V2, built-in circuit debugger and programmer for the STM32 MCU is integrated into the panel.
STM32 evaluation kit STM32072B-EVAL general characteristics
- of four 5 V power supply options: power jack, St-link / V2 USB connector-user USB connector or auxiliary card
- supports stereo audio jack headset with microphone connected to DAC and ADC stm32f072vbt6.
- 2G byte (or more) SPI interface microSD card,
- I2C-compatible serial interface temperature sensor
- RF E2PROM
- RS485 communication RS232 and
- IrDA receiver
- IR LED and IR receiver
- SWD debugging support St-link / V2 embedded
- stm32f072vbt6 240x320 TFT color LCD connected to SPI interface of the
- 4-directional control and the joystick, selector
- button, reset and tamper with the
- four-color LED and two user LEDs, low power alarm as the MCU
- card or a wrapping board for Additional extension connector
- voltage selection 3.3 V fixed or adjustable from 1.65 V to 3.6 V MCU
- USB full-speed connector
- detection, Touch the buttons
- with spare battery RTC
- CAN2.0A / B compliant connector
- light dependent Resistor (LDR)
- Potentiometer
- with DDC and CEC on two HDMI connector
- smart card slot
- motor control connector
