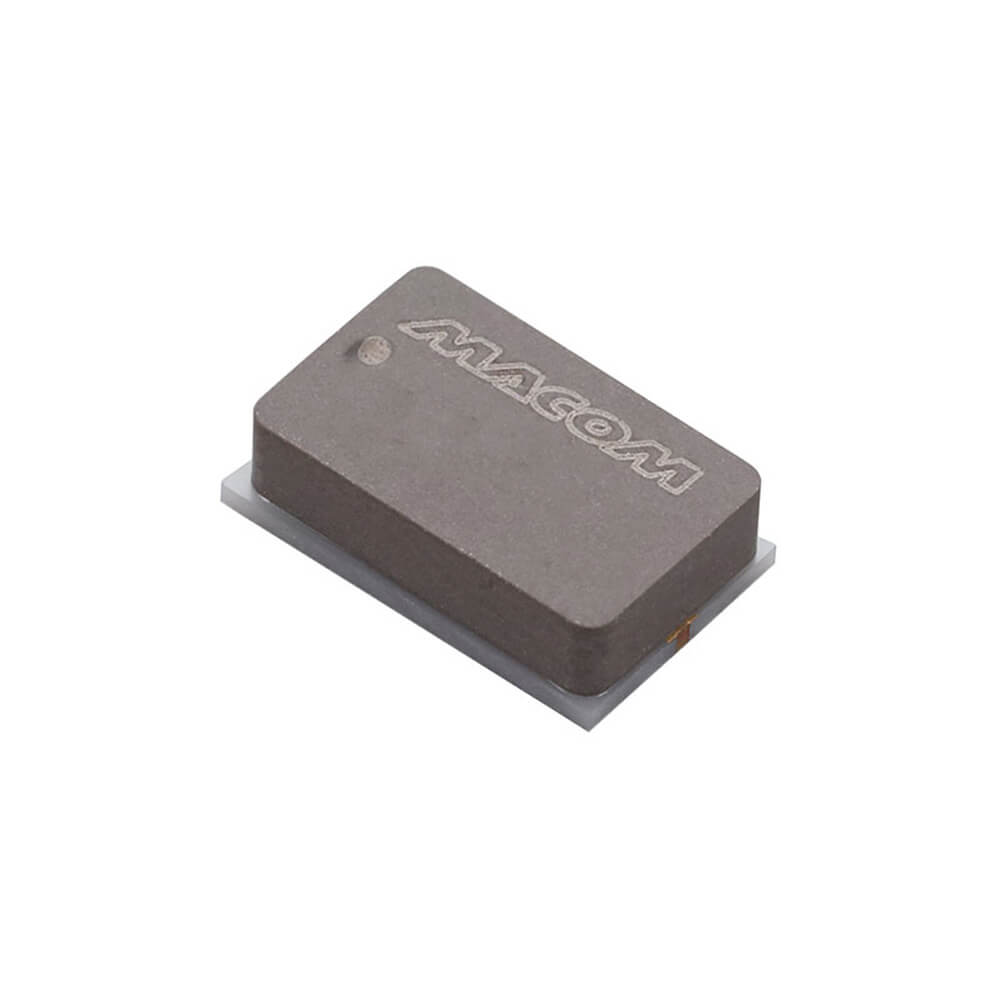

LM200802-MA-300 PIN Diode Limiter

Macho lm200802 I-m-a-300 PIN diode limiter

LM200802 macho brand developed by I-m-a-300 product is a PIN diode limiters. Operating in 20 MHz to 8 GHz frequency range, passive two component phase power limit feature. LM200802 PIN and nip diodes are obtained by the integration of the ceramic substrate-m-a-300 is similar to the structure of the hybrid product. Moreover, 8x5x2.5 mm SOT-23 package, thanks to a small-scale circuit can be used. Providing high isolation and low signal loss LM200802-m-a-300, microwave and broadband performance makes a difference. -65°C to 150°C in conditions of temperature between the productive component allows smooth operation even under challenging conditions. Also if you're looking for a new limit you with a wide frequency range LM200802-m-a-300 product you can choose.

LM200802-m-a-300 what is it?

High power microwave and RF receiver circuit which provides protection of the signal systems LM200802-m-a-300, minimizing signal distortion. Designed as some sort of a limit, the component also makes the nip diode rough limitation. However, the sensitive PIN diode provides protection in the removal process. DC bias RF Return Path completes without shock LM200802-m-a-300 product, helps to facilitate the integration of the circuit. LM200802-m-a-300 free operation in the harshest conditions among the features of advantage. -55°C to 125°C temperature range up to 8 GHz, designed to provide protection for a long-lasting and safe. Wide frequency protection is required where any system, network, device and application used in LM200802-m-a-300 product, satellite communications, military electronics, telecommunications in many areas, from medical devices are evaluated.

LM200802-m-a-300 What are the features?

The frequency range 20 MHz to 8 GHz working LM200802-m-a-300 specifications and attracts attention. Typical insertion loss 0.5 dB 15 DBM flat leakage power level is at the level of the type of component. Limiters VSWR of 1.3:1. LM200802-m-a-300 product of 25 dB maximum input power, peak power has been identified as 40 DBM. Located in the component diode reverse voltage 50 v NIM + 0.5 pF 0.2 PF capacitance value of the capacitance of the PIN diode is at the level while providing. Similar to the allocated component operating temperature range thermal resistance of 50°C/W storage temperature range-65oC to 150 OC in the range of. At 2 GHz 20 DBM, 14 dBm at the entrance provides maximum isolation leakage power. Mounting surface for practical use limit generally produced in a compact size, high efficiency, and versatility are renowned for features such as high performance in extreme conditions.

LM200802-m-a-300 what is it used?

Thanks to its hybrid design and compact dimensions, with a wide field of use LM200802-m-a-300, the frequency can be evaluated in any system that requires protection. Available features, functions, depending on the support and mounting LM200802-m-a-300 product are the most preferred devices, systems and applications can be listed below:

• radar systems LM200802-m-a-300 with the use of buyers high power radar signal is low while the signal quality is maintained with Il-maintained.
• Applications in telecommunications, RF is preferred to provide protection LM200802-m-a-300 base stations in the circuit and the antenna is located.
• Including a variety of RF test equipment test equipment is used for the purpose of the overload protection of the sensitive components. Moreover, small compact package with a size-scale equipment is ideal.
• LM200802-m-a-300, limiters, and military electronic systems, EW systems and tactical communications for protecting the security of the recipient in the line is preferred.
• RF-based imaging systems in medical devices to ensure the stability of the receiver is used.
• LM200802-m-a-300 aircraft communication circuits are protected product ensures that high frequencies. It is also durable in the aviation system in general, because the communication line is preferred.

LM200802-m-a-300 Prices

in America based, recognized as the developer of the component macho, I'm in almost every product offers budget-friendly price options. The PIN diode, which is one of the models of the brand LM200802 limit-m-a-300 is priced compared to the product function. LM200802-m-a-300 price of the component specifications, compatibility is determined by functionality and durability. Macho offered to the liking of the user with a quality LM200802-m-a-300 Empa Store product from the online store is easily accessible. Moreover, the representatives of Turkey, located between Empa my macho brand of Electronics, has a wide product range. For this reason, LM200802-m-a-300, you can browse for other modules and components you may need when purchasing. RF PIN diode limiters also a new generation of protection for you if you need to LM200802 through the store Empa-m-a-300 can be ordered.

Click to get datasheet and detailed information about the product.
