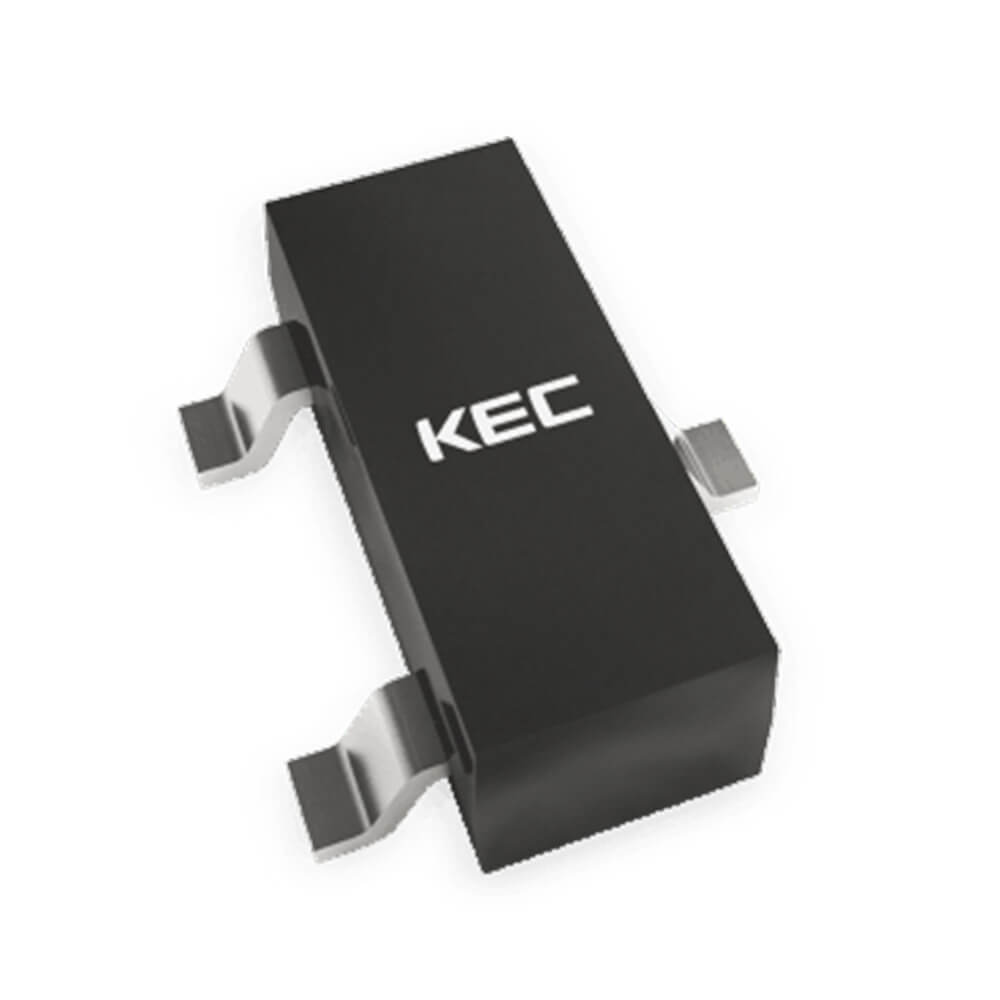

BAV99-RTK/P SOT-23 Small Signal Switching Diode

KEC BAV99-RTK/P, SOT-23 Diode

BAV99 KEC semiconductor with the assurance offered to the liking of the user-RTK/P product Silicon epitaxial diode module. This diode which is designed for high speed switching, SOT-23 package is presented to the customer. Compact size and surface mount technology, thanks to the different types that can be easily integrated PCB BAV99-RTK/P product, low capacitance and attracts attention. -55°C to 150°C diode module that can work seamlessly in the temperature range up to 4 shows superior performance even in applications with high frequency with fast reverse recovery time ns. RoHS compliant and suitable for use in protection circuits for signal switching BAV99, which is produced from materials-RTK/P product, for the pursuit diode fast, compact and reliable solution. If you need to obtain a new diode BAV99 you also for your projects-RTK/P product you can choose.

BAV99-RTKP what does he do?

Double diode BAV99 Silicon epitaxial designed as Serial-Attached-RTK/P products, the electronic routing of signals in circuits and high-speed switching allows. Moreover, 40V VR + VRM voltage 85v shows stable performance in applications with medium values. Short-term high currents that are able to tolerate BAV99-RTK/P product, at the same time, low-loss signal transmission provides. Fast switching with reverse recovery time diode module capable of, reverse allows you to increase the leakage current by the value of energy efficiency. Attention BAV99-RTK/P dissipasyon there is between 350 MW power properties. Owing to the features in high-frequency circuits, that can be used safely even BAV99-RTK/P products, consumer electronics, telecommunication, computer hardware such as power supplies from many electronic systems may be preferred.

BAV99-RTKP what are the characteristics?

BAV99 diode designed as a strong-RTK/P product peak reverse voltage reverse voltage 85V 40V, 200 MA continuous forward current value. The value of 450 Ma diode module IFM, peak forward current 1A wavy produces. IFSM known as the square wave 10 Ms this value is provided in the conditions. BAV99-RTK/P is the thermal resistance between the one who pointed out that most specifications. 357oC maximum thermal resistance, diode prevents the module from sudden temperature changes affected. Forward voltage IF= 1mA while the module 0.715 v, if = 10mA 0.855 while the voltage value V, IF = 150 mA 1.25 V when is equal to. 0.025 µA to 50 µA reverse current capacitance 1.5 PF maximum value is at the level of the ranging module. BAV99-RTK/P is 4 NS, and the reverse recovery time of the product is maximum. Featured with compact package, packet sizes of the module 2.9x1.3x1 mm and the weight 0.008 grams.

BAV99-RTKP where it is used?

BAV99 diode designed as a strong-RTK/P product has a wide range of applications because it is suitable for surface mounting technology. Rapid advances in general, as well as protection which is suitable for use in systems that require BAV99-RTK/P, is situated in the most common power sources. Such as Battery Chargers, DC-DC converters used in reverse current protection diode module provides. BAV99-RTK/P can be seen in the use of computer hardware. For example, the USB port in the motherboard used in circuits diode module, provides protection against excessive voltage. BAV99-RTK/P other uses of the product are as follows:

• Antenna switches, RF circuits, such as signal is used because of routing feature.
• DSL modems for high-speed data transfer and various telecommunication lines, including lines BAV99-RTK/P is used.
• The diode such as protection in the engine control unit engine control systems is preferred as BAV99-RTK/P products, automotive electronics systems and circuits for different areas.
• Used in consumer electronics products BAV99-RTK/P product, most TV receiver in switching makes the channel change signal.

BAV99-RTKP Prices

KEC Semiconductor are included in the widest product range of world famous brand BAV99-RTK/P product with the price at the appropriate level is conspicuous. Diode module successful, low-loss, high-speed switching, compact design, compatibility compared to features such as a budget friendly solution. BAV99-RTK/P price in determining the product's technical features, performance, areas of Use and the assembly process is taken into account. KEC Semiconductor based in South Korea offered to the users liking with the quality of BAV99-RTK/P product Store online stores it is possible to reach easily from Empa. KEC semiconductor store located between the representatives of Turkey, Empa, modules, components, accessories, and kits from rich product with outstanding attention. Hence BAV99-RTK/P purchasing other products, you can browse for your needs. You also have fast switching + protection diode BAV99 Silicon epitaxial through the store if you want to obtain Empa-RTK/P you can order.

Click to get datasheet and detailed information about the product.
