| Konum | Miktar | Kargo Durumu |
|---|---|---|
| Müsait Stok | 5 Adet | Aynı Gün Gönderim 1-3 Gün Teslim |
| Antrepo Depo Stok | 0 Adet | Antrepo’dan Gönderim 2-3 Hafta Antrepo Teslim |
| Toplam Stok Miktarı | 5 Adet |
ultra-low-power STM32U5x9NJH6Q microcontroller (ARM® Cortex®‑M33 core, Arm® TrustZone®), 4 MB flash, 2.5–3 MB SRAM, SMPS, TFBGA216 package

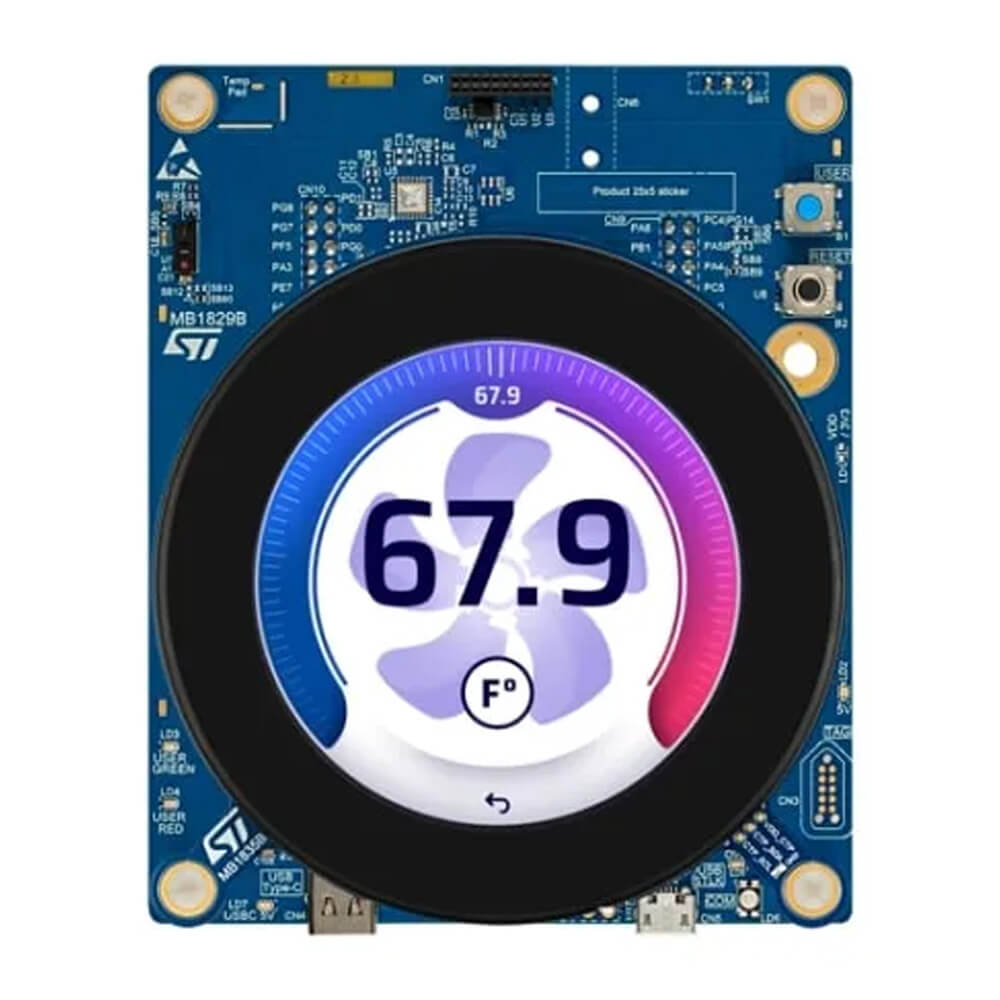

2.47" RGB 480×480 TFT round LCD; 16.7 M color, DSI MIPI 2 lane interface, capacitive touch panel with
USB Type-C® interface, USB 2.0 HS, just sink
low-power system, the VDD 1.8 V
MEMS sensor (STMicroelectronics), Time-of-flight (ToF) detection and gesture, temperature sensor
options Memory: 512-Mbit Octo-SPI NOR flash, 512-Mbit Hexadeca-SPI PSRAM, 4 GB eMMC flash
user interface: 2 LEDs, the user of the reset button,

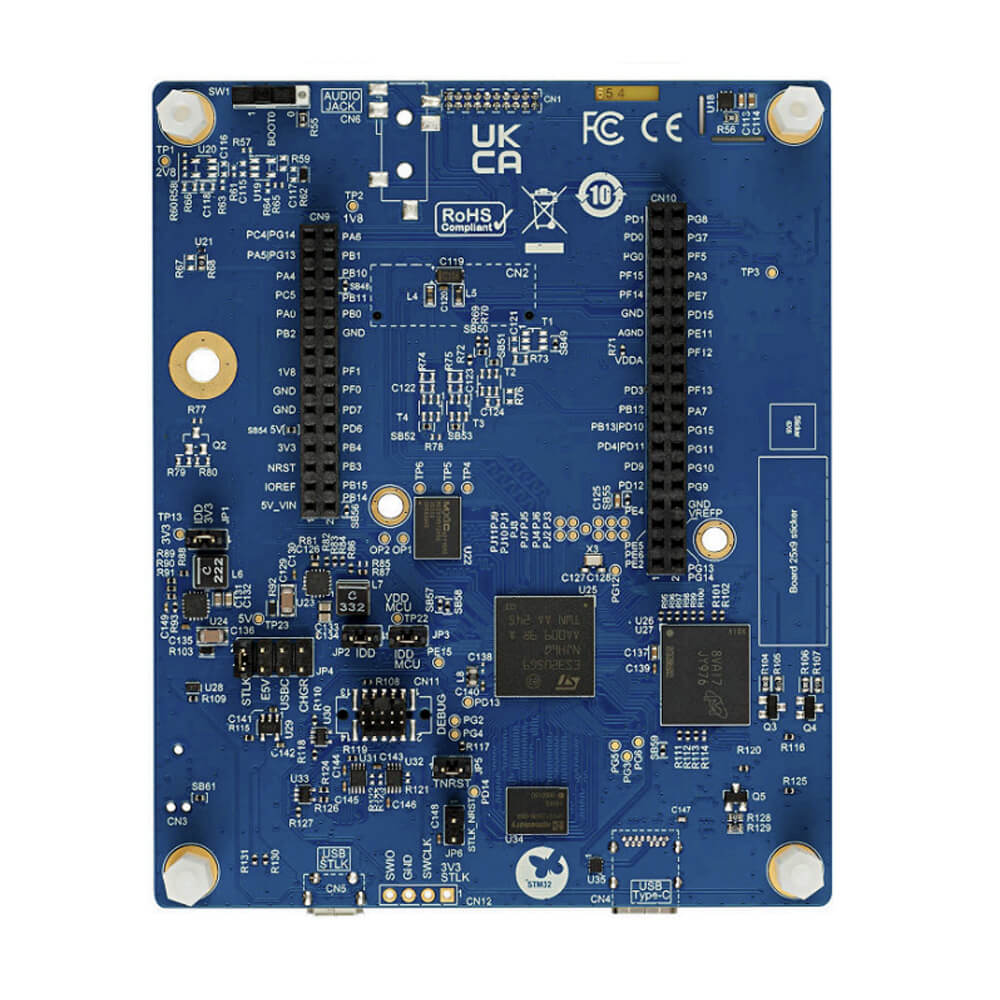

Expansion & connectors: USB St-LINK Micro-B USB Type-C, 2× double-row 2.54 mm pitch headers, MEMS audio daughterboard, MIPI10, Tag-connect 10-pin
Flexible power supply: ST-Link, USB VBUS or external source to a USB connector
on-board STLINK-V3E debugger/programmer; mass storage, virtual COM port debug port supported
