IGBT Power Module GD100HFQ120C8S

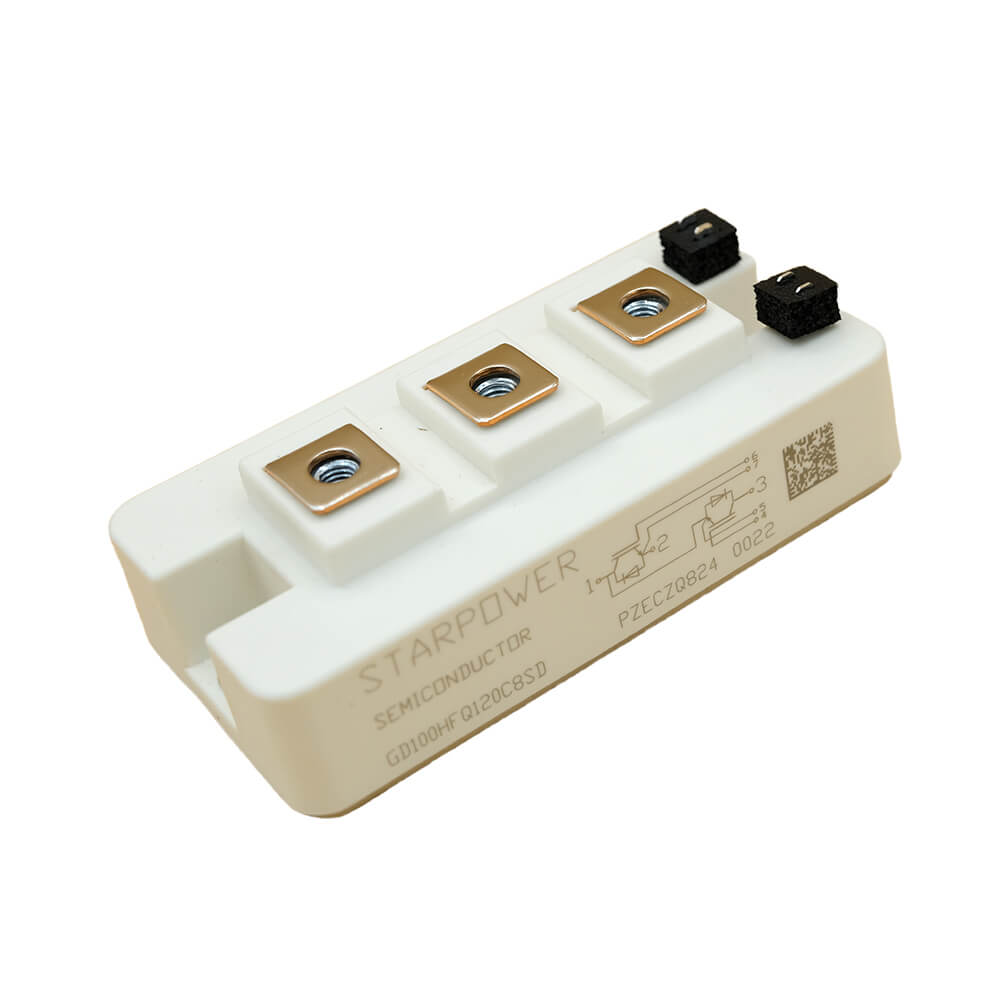

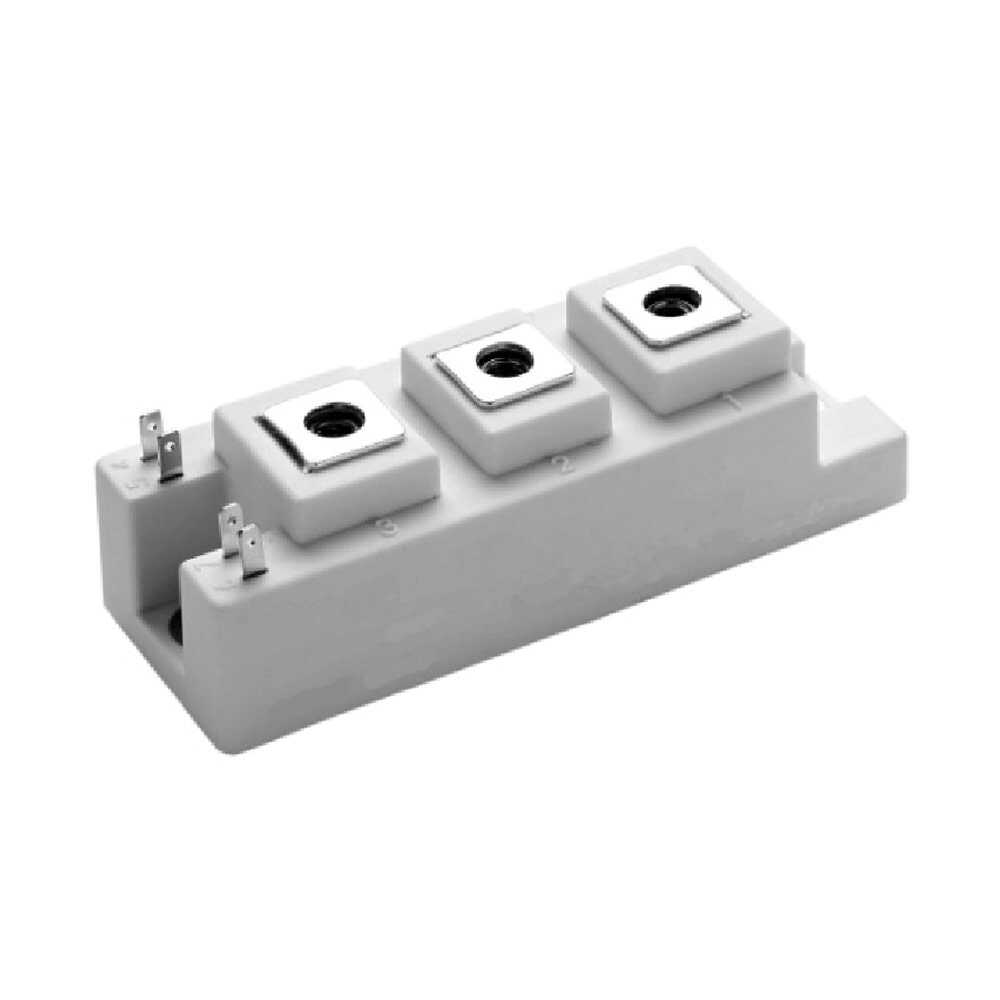

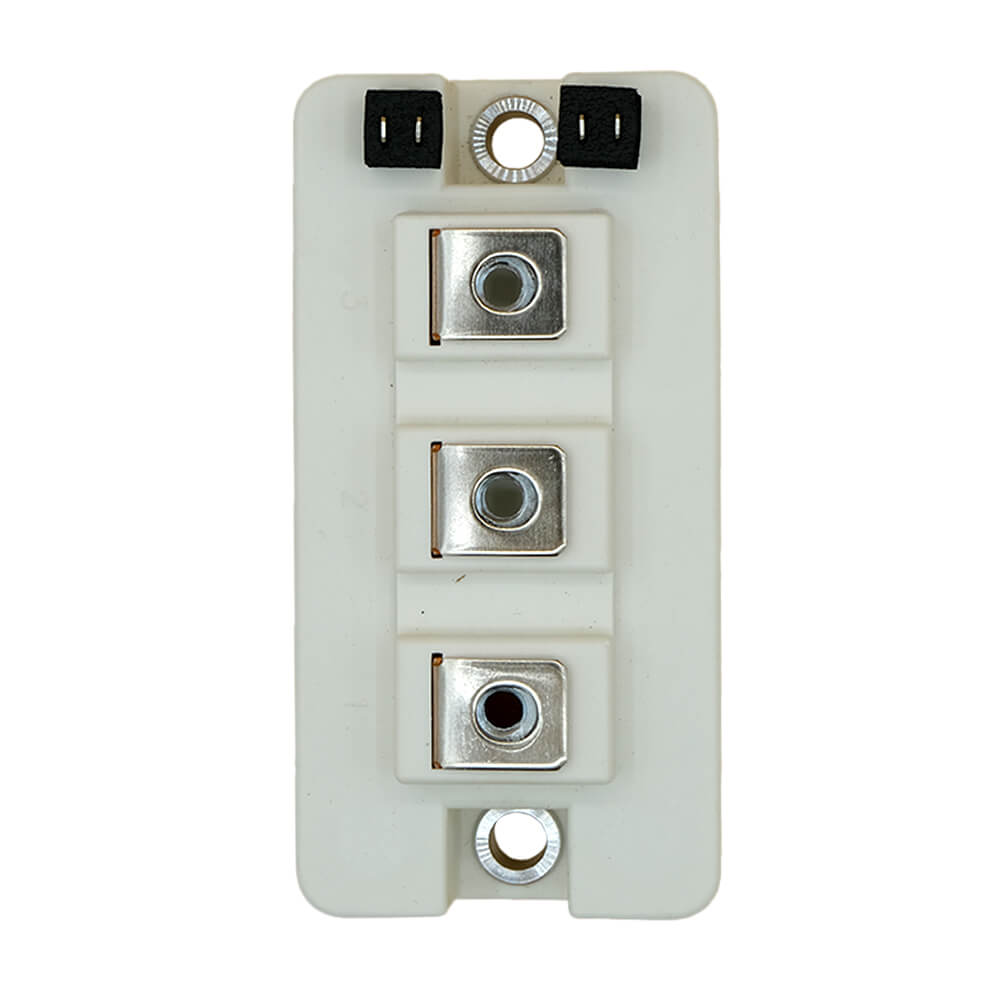

StarPower IGBT power module GD100HFQ120C8S

that attracts attention with the functional use of the power modules electronic components. Modules include many varieties with different designs and characteristics. Among these, GD100HFQ120C8S IGBT power module, is a module developed by star power. GD100HFQ120C8S features, efficiency and quality to the users with a flawless performance. Used in applications requiring high current IGBT power module, is.

GD100HFQ120C8S what is it?

GD100HFQ120C8S, the acronym “IGBT” which has a composite insulated gate transistor” is a product which is working with a principle. The semiconductor switching feature is used in various applications that require high strength. In these applications, the module that performs the function switching, system control and power conversion needs. Thanks to its compact and lightweight design, allows a flexible usage.

GD100HFQ120C8S what are the technical specifications of the product?

GD100HFQ120C8S that makes a difference in the field with technical features power module. Properties of the product can be explained in the following way:

• IGBT power module, with its ultra-flexible structure offers a unique experience.
• “Compound transistor insulated gate” switching type.
• With a maximum switching current of 100 works.
• Transmission loss due to low consumption and energy savings.
• Low VCE (sat) Trench IGBT technology exhibits superior performance with.
• With a temperature of 175 degrees maximum link power module works.
• Low inductance feature provides an optimal balance between the coil and the electrical current.
• Anti-parallel FWD Technology, Fast and soft reverse recovery technology supports.
• The maximum operating voltage of the device, 1200 V has a value.
• Heat sink with cooling technology.
• The operating temperature of the power module -40 to +125 °C range.
• Overcurrent, overvoltage, overtemperature and short circuit protection against risks such as provide.
• Power module is controlled by the circuit usually drive.
• Soldering or screwing with a method can be mounted.
• Its small and lightweight design with practical experience during handling and transportation.

GD100HFQ120C8S where it is used?

GD100HFQ120C8S, with functional properties in different industries preferred power module. Various motors, pumps, compressors, such as large industrial machinery to control speed and torque of the power from the module is exposed. DC / AC or AC / DC current would be a good solution for systems and devices that require transformation. Solar, wind and other alternative energy systems energy obtained is used to communicate to other devices. Welding and cutting machines, such as high-powered switching device is also preferable for the purpose of the industrial field. Power module; power management and conversion applications in many telecommunications telecommunications and performs efficiently. Industrial areas and infrastructure projects that need high power plays an important role in the management of lighting systems. GD100HFQ120C8S; train, tram, rail transportation, such as metro systems, power distribution and motor control is preferred.

GD100HFQ120C8S what does he do?

GD100HFQ120C8S basically, electrical currents and high power switching is used for control purposes. High electrical currents at a switching function provides accurate and reliable. At the best level module that holds the power level of the system, the optimal power control.

GD100HFQ120C8S how is it used?

GD100HFQ120C8S power module should be carefully prepared before use. The first step in the installation section of the module connections are properly made. During the connection of the application and the needs of the system should be taken into account. Should be checked after the connections have been made. After this stage, the switching process should be prepared in order to fulfill a control circuit. As she prepares control circuit, the power levels should be used efficiently to provide a DC source. After this stage, by sending control signals to the module should be done. Then test to make sure the module is working properly phase begins. The module is tested to work taking it enables the active state. After using the module, should be brought to a passive state. Are important for the security of this transaction, while at the same time, energy efficiency is important.

GD100HFQ120C8S Prices

GD100HFQ120C8S power module, which is suitable for users who are working in many areas of a product. These features, as well as prices GD100HFQ120C8S come to the fore. Empa power module through the store, you can examine in more detail. Empa power module and other products of the store by visiting the online store, you can buy gd100hfq120c8s you need right now.

Click to get detailed information about the product.
