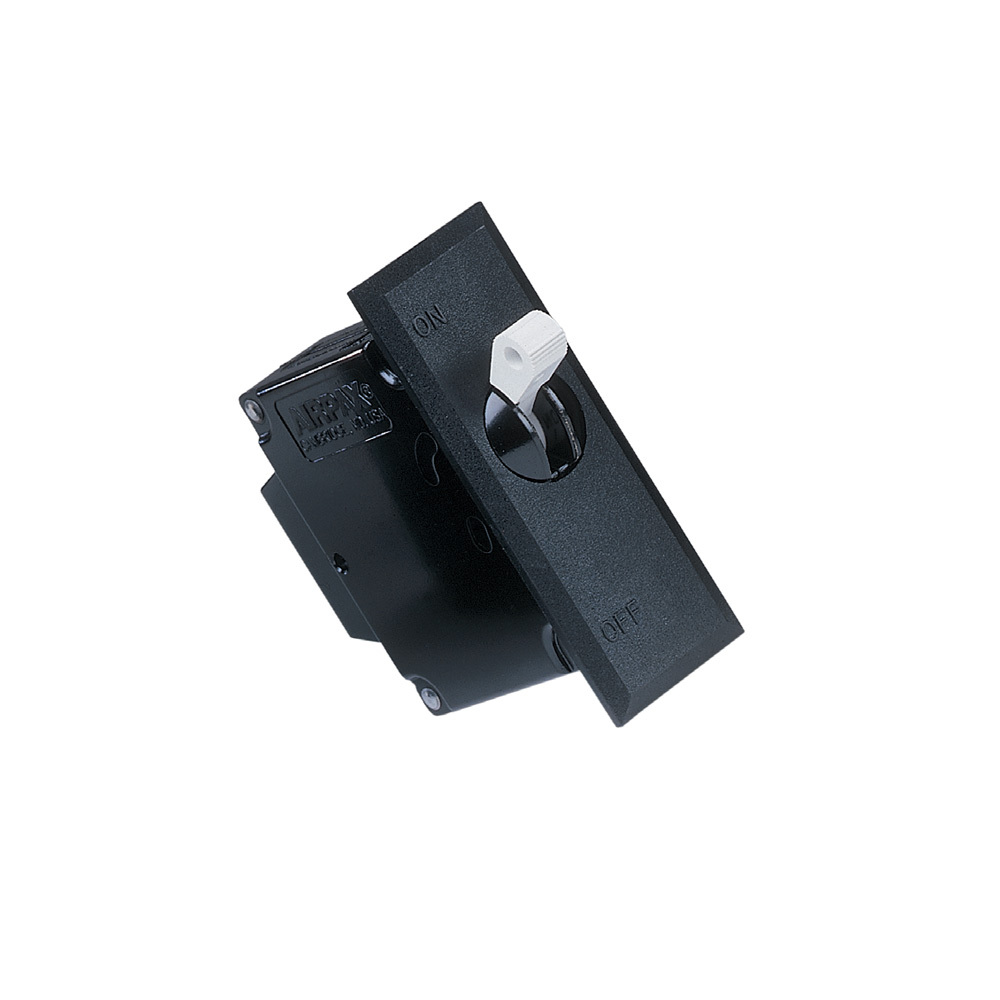

IAGN1-1REC4 Magnetic Circuit Protectors

IAGN1-1REC4-Magnetic circuit breaker

IAGN1-1REC4 products, superior performance, and combines it with durable construction. Running by using superior technologies, product meets the requirements in the different fields of the designer. Thus, during uninterrupted and reliable performance is a precursor to the applications. Each level models that appeal to the user, resistant structure come to the fore.

IAGN1-1REC4 what is it?

Sensata of the Airpax™ series IAGN1-1REC4, protector magnetic circuit model. IAGN1-1REC4 provides a great advantage in terms of features for designers. Features versatility and is ideal for low cost effective circuit protection.

IAGN1-1REC4 for what purpose is it used?

IAGN1-1REC4 versatile it is distinguished by a feature. Who serves as a magnetic circuit model works by combining two independent coils. Rectangular cutting and due to its compact design, it eliminates the need for panel mounting. IAGN1-1REC4 circuit breaker is preferred in applications that require data processing. Vending machines from military applications, from medical devices used in a broad range of broadcast equipment. IAGN1-1REC4 product and overcurrent protection on / off switch at the same time fulfills the tasks.

IAGN1-1REC4 what are the technical specifications of the product?

IAGN1-1REC4 a highly effective product in terms of technical specifications. In this way, many applications offers flexibility in different areas. Notable features of the product are as follows:

• IAGN1-1REC4, 50/60 Hz and 400 Hz for various delay options.
• 0,050 with values from 50 amps to work.
• IAGN1-1REC4, CSA certified as supplementary protectors.
• The circuit protector, precision-designed using hydraulic magnetic.
• "Release" the action has this model, which allows you to open the circuit in case of overload.
• During the application, move the lever to the “On” position, even though the mechanism detects the failure and automatically opens the contacts.
• Rating configurations including serial switched delay and offers a variety of options for help. 400 Hz 50/60 Hz DC shunt and relay with versions of the product or system options.
• Provide overload protection for the critical load of the circuit protector. In case of overload, the operating handle moves positively to the off position.
• Single or multi-pole versions in different applications thanks to the efficient performance of the exhibits.
• Comes as a single-pass units handled per pole.
• Each pole also allows you to mix SELV and hazardous voltages.
• Viewed from the side of the product, protective of the poles are numbered sequentially. During this project offers easy handling.
• The product is flat-barrier or an optional “Z” type barrier options.
• Elegant and aesthetic appearance for front panel applications.
• The system is designed for controlling two separate loads, shunt opening.
• Contrasting double-color rocker actuator options are “open” or “closed” has a color indicator for special cases.
• The silicone rubber gasket makes a natural product for hard surfaces around the stem.
• Protective circuit, -40 and +85 degrees can operate in a temperature range of. Thus, even allows usage in harsh environments.
• 10,000 is the process of working life.

IAGN1-1REC4 is used in which sectors?

IAGN6-1REC4 comes at the beginning of the use in various industrial applications. A continuous work in factory automation the term product, an efficient energy management. One of the important components of the maritime sector IAGN6-1REC4, ship's navigation systems, in areas such as communication infrastructure is indispensable. Protector circuit plays a critical role in commercial and military aircraft systems. In this area, combat aircraft, electronic warfare applications, forms the basis of systems such as unmanned aerial vehicles. Automatic flight control system high precision technologies that require the product that is acting from the communication module performs the task effective in radar signal processing. Outside these areas, power control systems, it is often desirable in applications such as sensors and measurement devices.

IAGN1-1REC4 Product is affordable?

IAGN1-1REC4 quite affordable in terms of prices of a product. Protective circuit produces a product which is price-to-performance flexible solutions in many applications. The price of the product may vary according to the order number and the supplier company. IAGN1 that fit every budget-1REC4 by taking your projects, you can decide what to do with.

IAGN1-1REC4 Empa Product in the store with the affordable price!

IAGN1-1REC4 product Empa now you can order via the store. The store serves Empa in the electronics industry for many years. Many brands and thousands of products on-site at the same time the Bar model from world-renowned brands in Turkey as the head official works. Besides the models in the store through the store you IAGN1 Empa-1REC4 you can buy, you can easily meet your needs.

Click to get datasheet and detailed information about the product.
