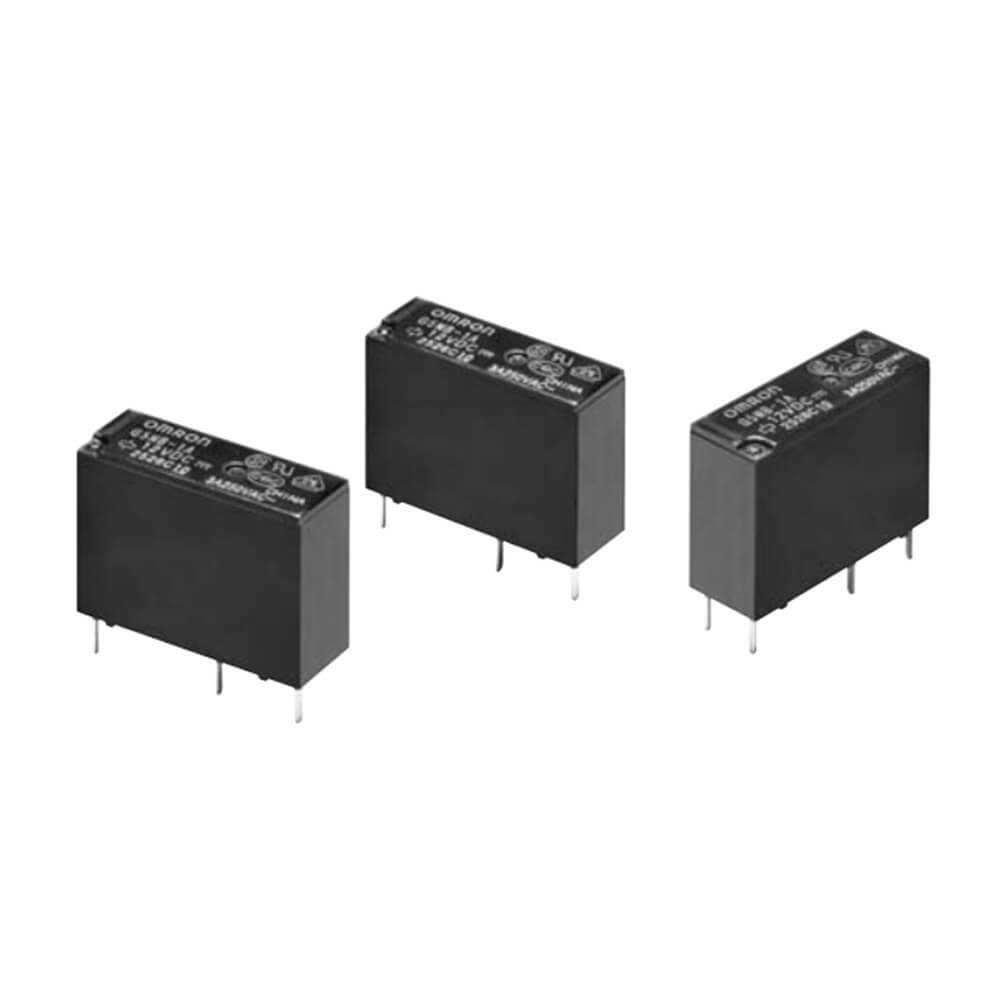

Omron G5NB 3A/5A 10 kV Pole PCB power relay
G5NB, miniature relay that can be used in various electrical appliances. With high voltage or low current switching capacities of different products that you can use to keep you under control you can choose from. 3A/5A with voltage 10kV switching capacity of the model, such as the ratio level. G5NB managed to stand out with impulse withstand voltages, it draws attention to its compact dimensions and lightweight. In this case, it is ideal for use in relatively narrow areas. Single-pole model the longevity of your transactions will also increase resistance. G5NB buy opportunities offers you the chance to create your order immediately.
Features G5NB
G5NB features, allows you to use the product in different electrical applications. After analyzing your needs, you can easily access the appropriate values of the product. Below you can check some generally G5NB specifications:
- model have standard values, which is designed to, UL/CSA/VDE ensures compliance with standards. However, the model IEC60079-1 and IEC60079-15 indicates compliance with standards.
- The highly efficient magnetic circuit sensitivity significantly in the name of preservation, such as 200 MW is preferred.
- The product ha, IEC/EN 60335-1 conform to the standard.
- G5NB-@-PW PWM pulse width modulation voltage control and retention in the context of the model, so thanks to the power consumption is reduced.
- The highest capacity of the model to be available for general purpose use, alternative to help you complete your applications easily contribute.
- The model dielectric strength between coil and contacts 4,000 vac, 50/60 Hz 1 min-shaped. The product in the same polarity between contacts 750 vac, 50/60 Hz for 1 minute durability.
- Impulse withstand voltage between the ignition coil with 10 kV (1.2 x 50 µs) is in the form of.
- Vibration resistance demolition as the Model 10, 55, 10 Hz and 0.75 mm single amplitude characteristics in the value of bears. 10 to 55 to 10 Hz, 0.75 mm single in the value of failure, 1.5 mm double amplitude shaped.
- G5NB shock resistance destruction 1,000 m/s2 malfunction 100 m/s2 has a value of.
- The product is capable of processing a minimum of 5 million mechanical -40°C to 85°C ambient temperature without condensation or icing can adapt to.
- The model, which weighs about 4 grams, with 5% to 85% in environments with humidity, can work productively.
G5NB in line with expectations in the choice of the user, while it is very important for you to decide. You will mount the relay electrical equipment, especially based on the values you will need to do the comparison. Thus, you can complete your work without any problems.
With a wide range G5NB Miniature Relay
, Miniature relay G5NB; alternate contact types, high durability and compact design allows it to meet your expectations. Many devices that are used in daily life, which is ideal for a quality and secure by choosing a product, you can perform Editing. Controlled switching of the model that makes a difference in some application areas are ordered as follows:
- G5NB products, systems finds its place in refrigerator. Through the model, you can control the operation of the refrigerator compressor. In this case, lets you adjust the refrigerator temperature to the desired level.
- G5NB water heater systems, it is possible to seek support from the model. Allows the circuit to the heating element during operation of the heater into the product, which makes it easy for water to get to the desired temperature.
- The contribution of the model of the compressor in the air conditioner for the operating system is enormous. Adjusting the fan speed and compressor operations such as running allows you to control stopping.
- January, oven, washing machine and household appliances for different relay g5nb you can choose. Thanks to the help of the product, alternative operating systems, you can make it work the way it controlled.
- You can edit G5NB relay through a small electric tools. Irons, blenders, hair dryers, engines, and numerous instruments, as well as the relay, which allows the heating elements to deploy, provides an opportunity to use the ideal.
- Industrial automation systems for small-scale switching you can meet the needs.
- Thanks to the model you will integrate alarm systems, can fulfill the functions of the sirens.
G5nb ideal for use outside of the above areas you can make some transactions on electrical systems in the automotive industry. Also in the control of different devices that are appropriate to the value in use can take advantage of the features of the model.
G5NB Relay the reference values
At 23°C. of at your product with a minimum processing capacity of 250,000, with a value of 120 VAC and 0.5 a surge 2,5 normal motor and carries the burden of the lamp. 0,24 160 VDC minimum load valve in processing and the product has a capacity of 250,000. With a transaction volume of the pump 140 vac load equally, you can obtain the value of 200,000. However, a rise of 1.6 and 5.4 you must pay attention to a steady state value. 100 vac motor load with a minimum transaction value of 200,000 and you can have a chance. G5NB offers support if we are to add value to your applications to take advantage of al. G5nb appropriate prices you over immediately by Empa electronics, you can create your order.
Click to get datasheet and detailed information about the product.
