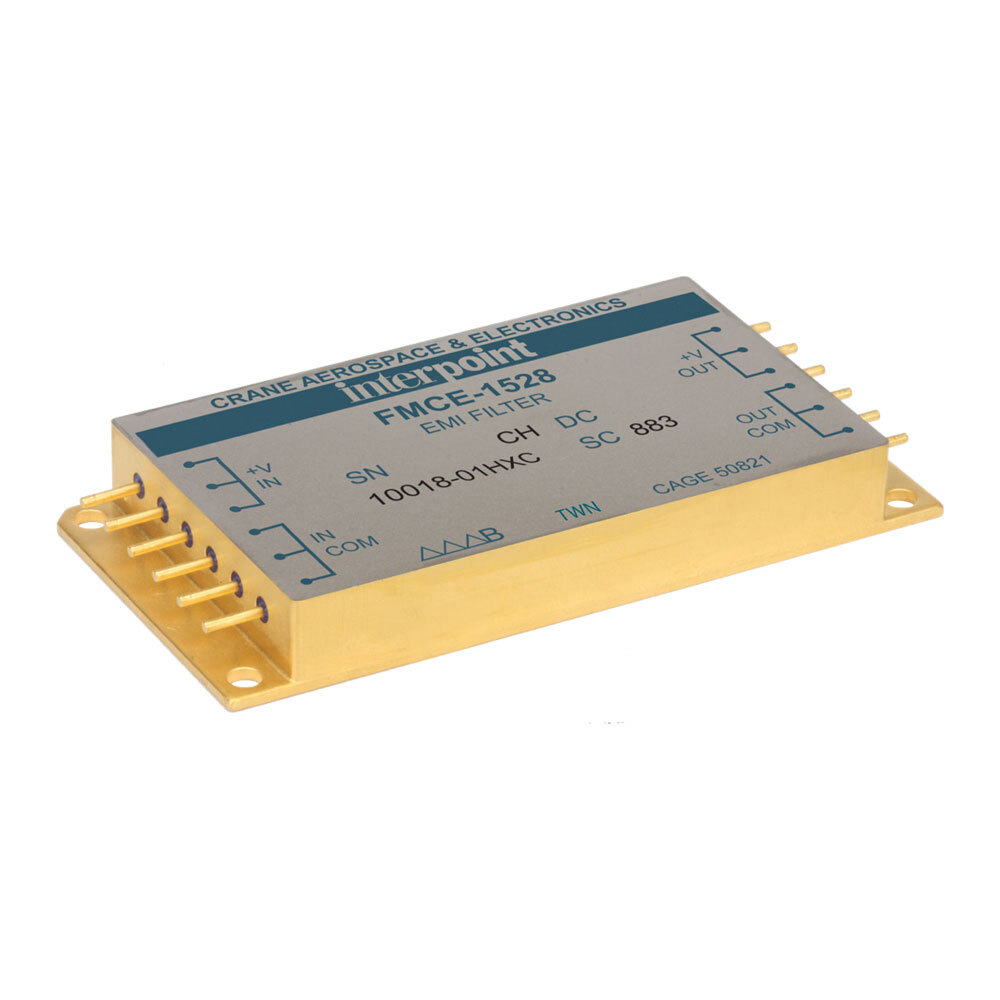

Interpoint® developed by FMCE-1528 series EMI filters with compact design and high reliability features stands out. These filters it has a capacity of 15 amperes current MIL-PRF-38534 Class H and produced according to the standard hermetically sealed in a steel crate is presented. Especially for high-frequency DC-DC converters, which are suitable for use in these filters, noise reduction, and are designed for the purpose of suppressing the fluctuation of the input line. FMCE-1528 series filters; PURPLE, MFX, MTR, MWR, MFK, MHF+ and MHV such as Interpoint DC-DC converter provide a perfect fit with 15 Amp and up to the current limit can be used.
DC-DC converters, by their nature, the two types of power input line noise on the component produces. These common mode noise and differential noise. Input ripple current, these two noise components. Differential noise occurs between the positive input and input common. Common mode noise capacitance between the base of the inverter power components and occur through leakage. FMCE-1528 filter this allows you to create a more clean power source by reducing the noise components of the translator. FMCE-1528 filters, typically at a frequency of 500 kHz and 1 MHz 70 dB reduction in the rate of Ripple current capability. In order to work efficiently the filter as close as possible to a point short of the base plate and placing the inverter, it is recommended to connect with a wide conductors.
FMCE-1528 series filters, MIL-STD-461 in military and other applications that require high reliability by ensuring compliance with these standards is preferred. These filters MIL-STD-461C CE03 and CS01 with MIL-STD-461D, E and F CE102, cs101 transmission offers superior performance as well as emission levels by meeting. Also indicates suitability for use in 28 volt systems, and fulfils all the requirements of this standard.
FMCE-1528 series filters, to 0.5 to +80 volts against transient voltages ranging from resistance. Transient voltage incoming blows from the sources to the filter, the filter is prevented from being transmitted to the inverter and improves the reliability of the system overall. These filters 0,5 ohm source impedance without damage from transient voltages can continue to work.
FMCE-1528, -55°C to +125°C range can operate at full power. The device temperature to +135°C when it reaches the current is reduced to 80%, a measure is taken to ensure that the device is protected. The maximum DC insertion loss of the filter, nominal input voltage than at less than 4% has the potential to cause a loss of power. Thanks to this feature, the device can operate with high efficiency.
hermetic metal cap FMCE-1528 filters, side-leaded packaging system equipped with. In this way, the filter provides high reliability in various environments. Different package structures (u, v, w, y, and Z) presented with filters, with a durable construction allows for long lasting usage.
FMCE-1528 EMI filter, that provide many advantages is preferred by users in accordance with. Some of these points are as follows:
FMCE-1528, an EMI filter is preferred in areas that require high reliability, such as military and aerospace. Especially for high-frequency DC-DC converters when used with the noise reduction performance draws attention. MIL-STD-461 filter that allows you to adapt to standards; telecommunications, industrial applications and power management systems can be used. MIL-PRF-38534 Class H to be produced according to the standard of the device enables it to operate reliably even under demanding conditions.
Empa Store, Interpoint FMCE-1528 users such as electronic components that connects with a reliable high quality supplier. Reliable after-sales service and wide product range, Empa Store offers high reliability EMI filters At Reasonable Prices. FMCE-1528 filter to get detailed information about the store you can visit to order online and Empa. You can reach the right solutions for your needs with the privilege of Empa Store.
Click to get datasheet and detailed information about the product.
