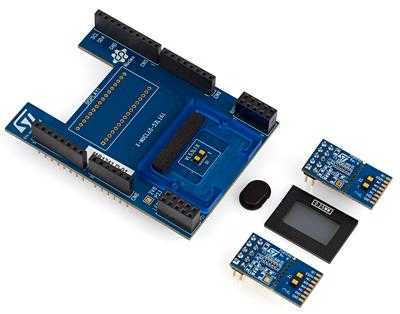

VL53L1X Sensor extension kit X-NUCLEO-53L1A1
for STM32 Nucleo expansion board based on sensor vl53l1x for long distances.
X-NUCLEO-53L1A1, NUCLEO-F401RE and NUCLEO-L476RG development boards have been developed for. VL53L1X ToF, long-range sensor technology uses.
X-NUCLEO-53L1A1 expansion cards, the cover glass to simulate various air gaps underneath 0.25, 0.5 and 1 mm in height, and three other parts can be attached glass holder is supplied with a cover of the Dec.
Two 10-pin connector using two VL53L1X card can be connected to break out.
A few St-expansion cards, for example, Bluetooth or Wi-Fi interfaces that allows development of applications for VL53L1X can be brought to the top through the Arduino connectors.
X-NUCLEO-53L1A1 expansion board, STM32 Nucleo Arduino Uno R3 connector layout, and development kit is compatible with the family.
VL53L1X Sensor extension kit X-NUCLEO-general characteristics 53L1A1
- VL53L1X time of flight (TOF), long-distance range sensor module
- independently from the absolute distance of the target image in the correct range
- to simulate the air gaps of 0.25, 0.5 and 1 mm separators
- window cover two different
- Two VL53L1X breakout Card
- Compatible with STM32 Nucleo Board family,
- an Arduino Uno R3 connector is equipped with TM
- RoHS compliant
- , including full system SW code examples and graphical user interface is provided. All of these www.st.com/VL53L1X at the “tools and software ecosystems section” folder can be downloaded from.
Click to get detailed information about the product.
