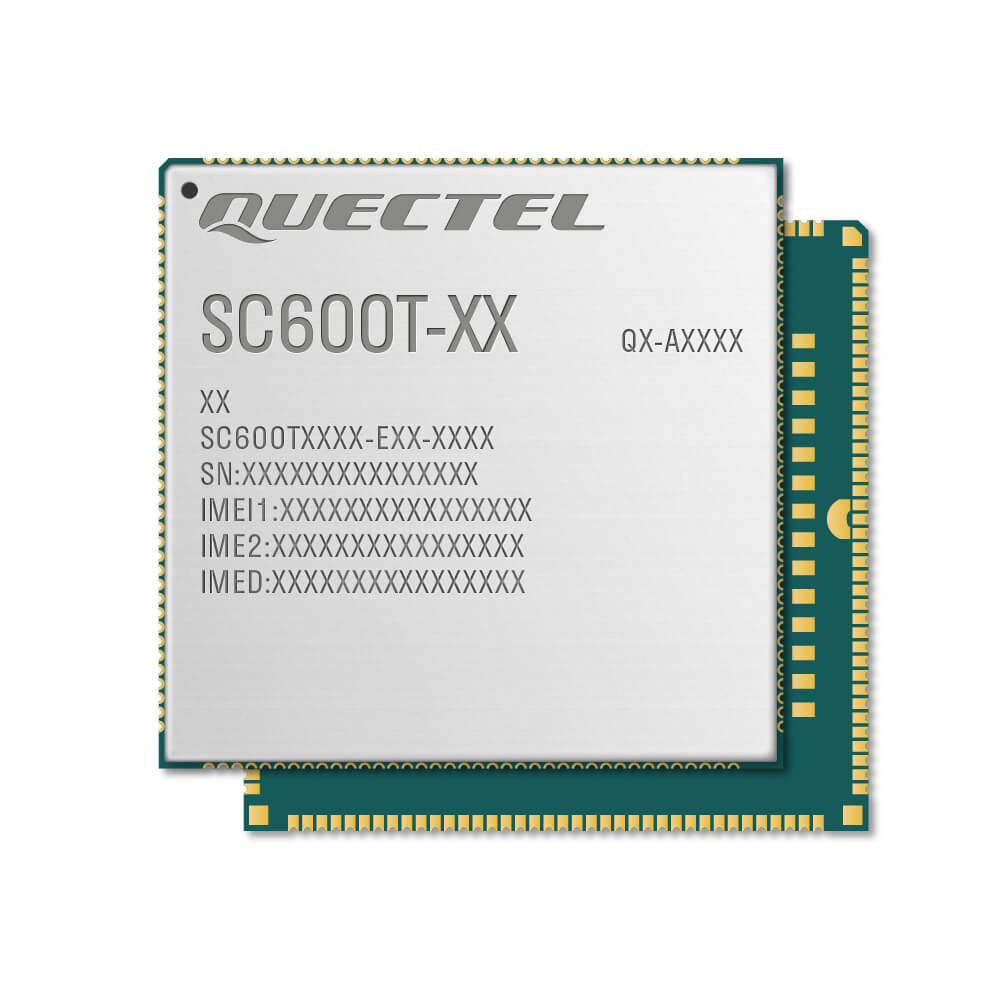

SC600T LTE Cat 6 Smart Module Series

Smart LTE module series SC600T Quectel

Quectel modules SC600T located between the brand's strong and intelligent, LTE Cat 6 module is designed for IoT projects. Qualcomm 8-core ARM Cortex-A53 64-bit processor and Adreno 506 GPU is equipped with the module comes with Android 9.0 operating system. Thanks to its compact size, small scale devices, and other applications that have space restrictions sc600t easily available in the product, with proof IP54 dust and splash protection. SC600T module, Wi-Fi, Bluetooth, GPS connectivity options and many more because it has intelligent robots can be used in many areas from PoS devices. You guys are the new generation, intelligent and powerful LTE Cat 6 module sc600t aside from if you're looking for your preference, you can use the product.

SC600T what does he do?

LTE Cat 6 module named SC600T, IoT devices, and powerful processing capacity gives you the properties of your internet connection. Offering download speeds of up to 300 Mbps download and 50 Mbps module, ensures rapid transfer of data while videos and other wireless Wi-Fi and Bluetooth 4.2 technologies can support. Module built-in GPS, BeiDou and GLONASS-assisted GNSS receiver can determine the location with an accuracy of 1.5 m. Vehicle tracking devices are used with this feature. Module 2 GB LPDDR3 RAM and 16 GB eMMC flash memory built-in SC600T quickly it processes data and stores it. From the camera screen, microphone, speaker with so many port module, suitable for versatile use. SC600T, smart robots can also be used to expedite the payment of or manipulate data in the crates.

SC600T what are the characteristics?

The connection modules are among the most powerful in its segment with sc600t technical features. Developed by Qualcomm, which has a speed of 1.8 GHz ARM Cortex-A53 8-core processor, water-fast and powerful performance module, Android 9.0 operating system. In this way, these devices will help to easily arrange programmed. The module is located in the 2 GB LPDDR3 RAM and 16 GB eMMC flash memory data storage area to speed up the process while providing support. Operating voltage range 3.55-4.4 V 600 MA 15 mA in active mode energy consumption in the sleep mode of the module is equal to. To be able to use this module in battery-powered applications, low energy consumption privilege provides.

Operating temperature range -35°C to +75°C SC600T, sudden temperature changes that occur in challenging situations works. The module is located in IP54 protection against dust and water protection while providing ESD protection to ±8 KV contact ±15 kV Air discharge provides. Rich connectivity options SC600T attention among the features stand out. Module, 2x LCM (FHD screen), 3x MIPI-CSI (1080p@30fps camera), touch panel 1x, 2x microphone, speakers, 2x, 3x UART, 2x USB (2.0/3.0), 2x I2C, 1x SPI and PWM 4x boards. All these thanks to the module or peripheral unit to the engine from the screen it is possible to connect many different components. Similar to being separated from SC600T flexible and versatile, allows you to Fast Charge 3.0 support Quick Charge the batteries.

SC600T where it is used?

SC600T offering a solution for both industrial and devices that are used in daily life, stands out with a wide field of use. SC600T to use most intelligent safes, smart robots, wearable technologies, in-vehicle entertainment systems, vending machines, POS devices, PDAs, portable tablets, security systems, industrial automation and police equipment found. With a few examples that can be given to the successful use of the module can be listed below:

• a beverage or a snack in the vending machine provides inventory tracking and payment processing for LTE connectivity.
• Fitness tracker or smart control performs the data transfer and display in hours.
• Cleaning or processing sensor data for navigation in autonomous robots robots in Logistics is preferred.
• Ensures fast and secure transactions at payment terminals that are portable.
• To collect and analyze data from the sensors are used in factories.

SC600T Prices

offered to the users liking with Quectel sc600t assurance, reasonable price level stands out. Price SC600T Cat 6 LTE, Wi-Fi, Bluetooth, and GNSS is supported with multimedia features. Price-performance balance settings it is possible to reach you via store online store sc600t module with Empa.

Empa Store has a rich assortment. For this reason, while SC600T other modules, components, kits, or you can browse by the integrated unit. You get fast, reliable and powerful connection module Empa sc600t through the store if you're looking for a smartphone you can buy.
